LIRUISI UPS 12 Volt Lead Acid Batteries Colloidal Sealed Deep Cycle Battery 200Ah
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | GFM12-200 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | GFM 12V Gel Sealed Battery Product Specifications: Standard Configuration |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | UPS | Voltage | 12v |
|---|---|---|---|
| Application | UPS | Product Name | Sealed Rechargeable Battery |
| Terminal | F12(M8)/F5(M8) | Electrolyte | Sulfuric Acid Gel |
| High Light | UPS 12 Volt Lead Acid Batteries,200Ah Lead Acid Batteries,Colloidal Deep Cycle Battery 220Ah |
||
Product Description

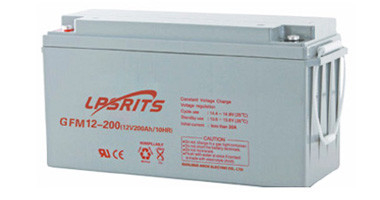

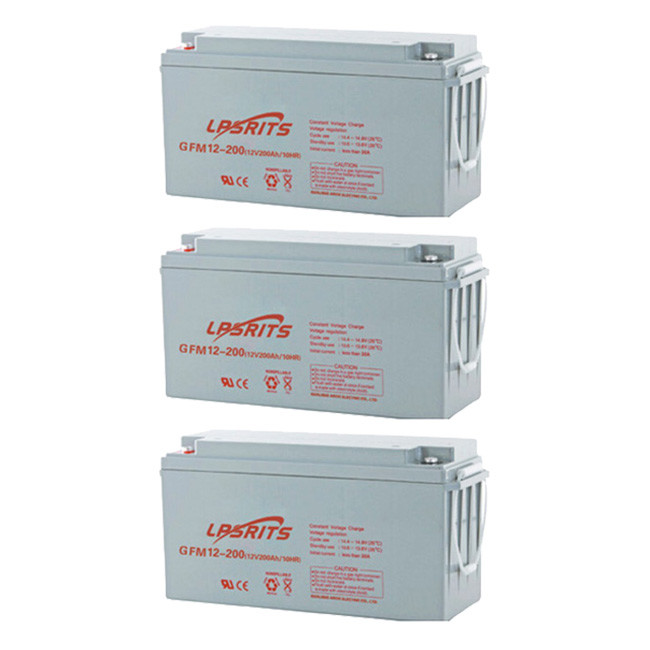

LIRUISI UPS Lead-Acid Battery-12V Colloidal Sealed Battery GFM12-200
Product introduction:
UPS battery GFM 12V colloidal sealed battery is a lead-acid battery specially designed for UPS systems. It adopts colloidal technology, which can effectively prevent the leakage and oxidation of the electrolyte, thereby improving the reliability and service life of the battery.
Product parameters:
| Model | standard voltage | 20HR capacity | Overall dimensions (mm) | Total weight Approx. (kg) | |||
| Length (L) | Width (W) | High (H) | Total height (TH) | ||||
| GFM12-200 | 12 | 200 | 522 | 240 | 216 | 242 | 53.0 |
Installation, use and maintenance
Connection of the battery:
1. Batteries or battery packs with the same actual capacity can be used in series
2. Cells or battery packs with the same actual voltage can be used in parallel
3. The connection part should be tight to prevent sparks; If the contact is poor, the contact surface can be cleaned with soda
Battery charging:
1. Float charge (limit voltage, control current) use: charging voltage 2.275-2.30V/single cell, temperature compensation, temperature compensation coefficient per unit is 3mv (based on 20)
2. When trickle is used, the battery float charge current is high speed to less than 2Ma/Ah
3. Cycle use (full and stop, discharge and charge): charging voltage 2.35-2.45V/single cell
Storage and installation:
1. The battery that is not in use should be removed from the connecting cable, covered with the pole sheath and wiped clean
2. Maintain and charge the battery every three months, the charging method is the current limiting and constant voltage method, the initial charging current is 0.1CA, and the charging voltage is 2.4V/single cell
3. The battery should be stored in a dry and ventilated place, away from direct sunlight and away from heat sources
Notes:
1. The battery is shipped with liquid and must not attempt to disassemble the battery to avoid danger. If the battery case is accidentally damaged and contact sulfuric acid, please rinse with plenty of water, and seek medical attention immediately if necessary
2. Do not mix new and old batteries
3. Do not use batteries in sealed containers
