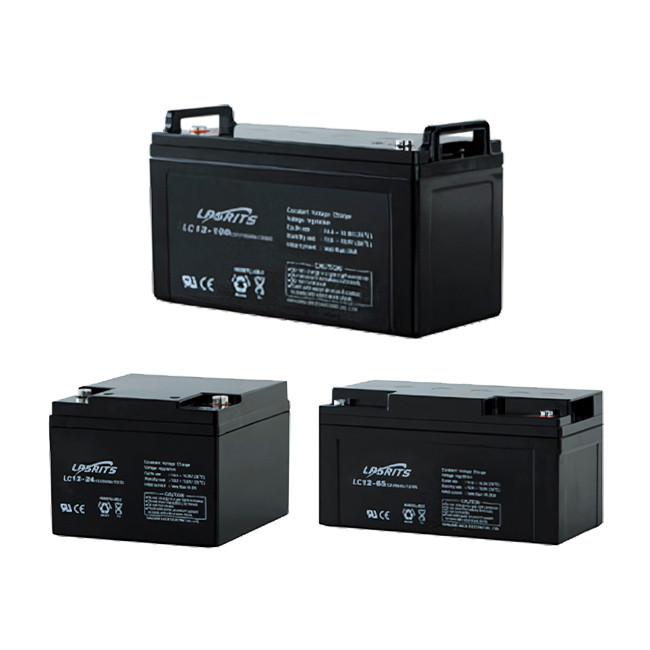

LIRUISI communication battery 12V 100Ah valve regulated sealed lead-acid battery LC12-100
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | LC12-100 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | UPS | Application | UPS |
|---|---|---|---|
| Nominal Capacity | 100ah | Battery Type | Gel And Deep Cycle/AGM |
| Type | Deep Cycle | Electrolyte | Sulfuric Acid Thixotropic |
Product Description
Product Introduction:Specifically, the positive electrode inside the battery is made of lead oxide and the negative electrode is made of pure lead. While charging, an external power supply supplies current to the battery, so that the lead oxide on the positive electrode is reduced to pure lead and the pure lead on the negative electrode is oxidized to lead dioxide. In this way, a chemical reaction chain is formed inside the battery, which generates electricity.
LC series 12V valve regulated sealed lead-acid battery series product specifications:
| Model | voltage | Capacity 20 hour rate | Dimensions (mm) | Total weight Approx. (kg) | |||
| Length (L) | Width (W) | High (H) | Total height (TH) | ||||
| LC12-100 | 12 | 100 | 407 | 173 | 210 | 236 | 33.0 |
Installation, use and maintenance
Connection of the battery:
1. Batteries or battery packs with the same actual capacity can be used in series
2. Cells or battery packs with the same actual voltage can be used in parallel
3. The connection part should be tight to prevent sparks; If the contact is poor, the contact surface can be cleaned with soda
4. The positive and negative poles shall not be reversed or short-circuited
5. The batteries of the battery pack should be spaced more than 10mm apart to facilitate heat dissipation
