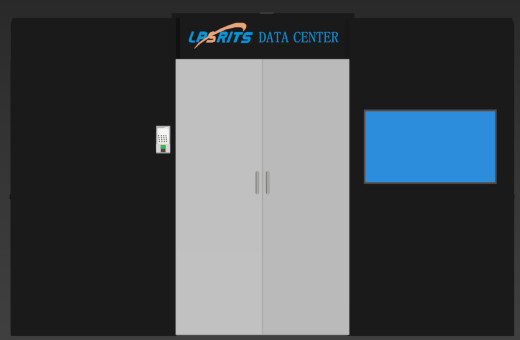

Micro Modular UPS Room Data Center Servers Double Row For Medical Education
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | VMDC-60-RRS |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Number Of Cabinets | 12 | Number Of IT Cabinets | 11 |
|---|---|---|---|
| UPS Type | Modularization | Power Density -kW/Cabinet | 5 |
| High Light | Modular UPS Room Data Center,Micro UPS Room Data Center,Double Row Data Center Servers |
||
Product Description
LIRUISI SYSTEM Series Micromodules Are Dedicated To Double-Row Computer Rooms
Product introduction:
The LIRUISI SYSTEM series micromodule solution adopts a compatible cold aisle closed or hot aisle closed design, and applies modular UPS and inter-row air conditioning, and the two rows of cabinets are connected by a top trunking to form an efficient, flexible and easy-to-manage double-row micromodule solution, and the fully modular design of components facilitates quick construction and seamless expansion later.
Scene application:
Core business equipment rooms such as large-scale data centers and campus data centers are suitable for Government, medical, education, finance, telecommunications and other leasing and self-use business.
Product parameters:
| Model | VMDC-60-RRS |
| Total number of cabinets | 12 |
| Number of IT cabinets | 11 |
| Power Density -kW/Cabinet | 5 |
| Redundancy type | N+1 |
| Cabinet depth - mm | 600 |
| Cabinet length - mm | 1200 |
| Cabinet height -mm | 2000 |
| Channel width - mm | 1200 |
| Channel length - mm | 4200 |
| Channel height - mm | 2300 |
| Power Section | |
| UPS capacity -kVA | 15*(4+1) |
| UPS type | modularization |
| battery | Customize on demand |
| PDU | 32A basic type 16 ports |
| Total Input Power Specifications | 250A/3P/380V/50Hz/60Hz |
| Refrigeration system | |
| Refrigeration type | air cooling |
| Air conditioning configuration--kW | 65.7*(1+1) |
| Air conditioning type | Row level air conditioner |
| Emergency ventilation | √ |
| Monitoring Section | |
| Monitoring function | touch screen |
| temperature and humidity | |
| UPS management | |
| Air conditioning management | |
| Smoke | |
| water leak | |
| video | |
