Power Distribution Cabinet Data Center Intelligent 50Hz 60Hz LIRUISI SPMC Series
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | SPMC |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Overall dimension width * depth * height (mm): 600 * 1200 * 2000 (can be customized) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Input Voltage | 380/400/415Vac | Input Voltage Frequency | 50,60Hz |
|---|---|---|---|
| Overvoltage Level | IV | Tolerable Pollution Level | 3 |
| Output Current | 0~ 63A/per Way | Number Of Output Channels | Maximum Configuration: 144CH 1P MCB Or 48CH 3P MCB |
| High Light | Intelligent Cabinet Data Center,50Hz Cabinet Data Center,60Hz Power Distribution Data Center |
||
Product Description

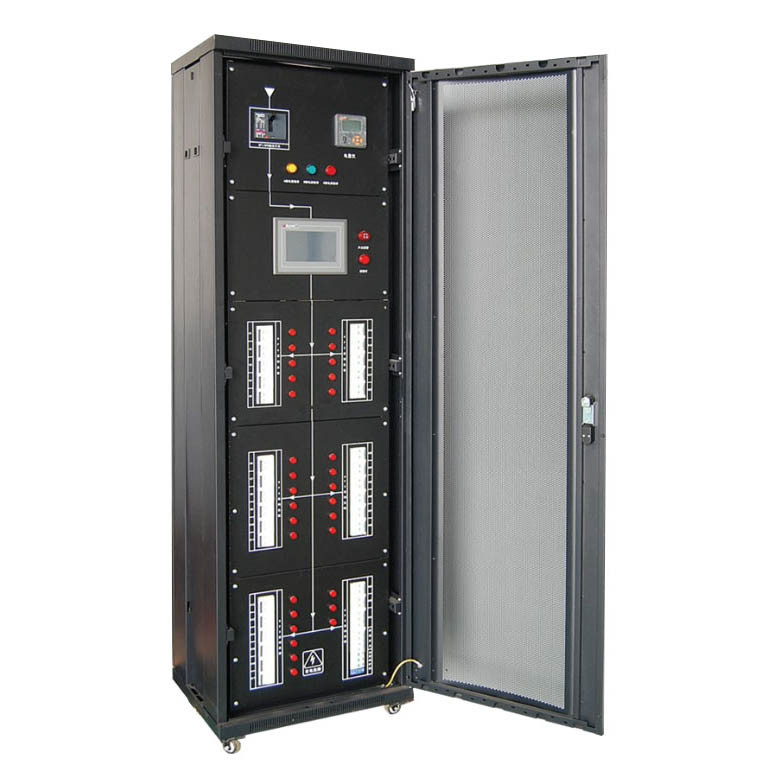

LIRUISI SPMC Series Precision Power Distribution Black Header Cabinet Room Special
Product Introduction:
LIRUISI-SPMC series power distribution AC headcabinet, is an intelligent power distribution management system applied to data center IT cabinets, which can comprehensively collect all power supply data.And uploaded to the background monitoring system, real-time monitoring and operation management of the entire power distribution system, is the ideal choice for the future all-round green data center.
Product Features:
LIRUISI-SPMC series power distribution AC headcabinet, is an intelligent power distribution management system applied to data center IT cabinets, which can comprehensively collect all power supply data, dual power input, up to 630A dual power inputSupports up to 144P output.
Product parameters:
| 【LIRUISI-SPMC】Technical parameters of precision distribution column head cabinet system | |
| Product model | SPMC |
| Selection capacity parameters | Optional capacity:125A,160A,250A,400A,630A |
| Performance parameters | |
| Input performance parameters | |
| Rated input voltage | 380/400/415Vac |
| Input voltage frequency | 50,60Hz |
| Overvoltage level | IV |
| Tolerable pollution level | 3 |
| Output performance parameters | |
| output current | 0~ 63A/per way |
| Number of output channels | Maximum configuration: 144CH 1P MCB or 48CH 3P MCB |
| Other performance parameters | |
| In and out mode | Up in, up out, down in, down out |
| Communication type | RS485/SNMP |
| Lightning protection level | Optional: Class C, 20kA (8/20μs) |
| Maintenance method | Front and rear maintenance |
| structural parameters | |
| Dimensions W * D * H (mm) | 600 * 1200 * 2000 (can be customized) |
| Weight (kg) | ≤350kg |
