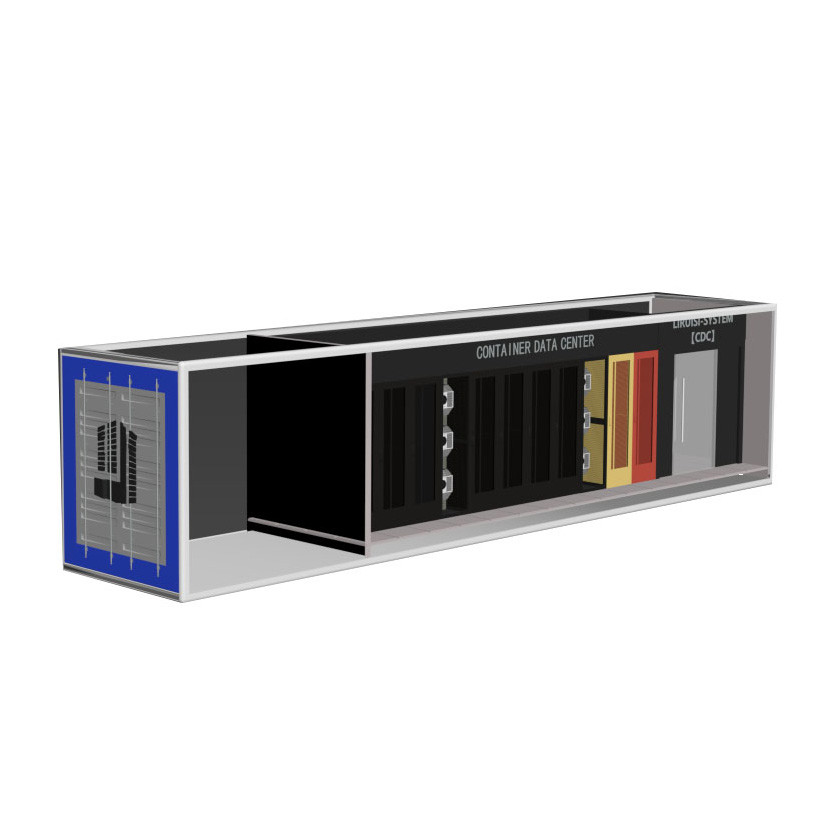

LIRUISI Modular Container Intelligent Network Room Dedicated Micro Module
Product introduction:
The modular computer room container is an integrated outdoor data center computer room infrastructure solution, integrating diversified functions such as power supply and distribution, temperature control, fire protection, cabinet, lightning protection, management and grounding, etc., and has a stable, green, energy-saving and reliable dynamic environment system with bearing equipment room equipment. And suitable for multiple industries and use scenarios, with the characteristics of minimalism, intelligence and security.
The characteristics of modular containers include:
Environmental protection: Modular containers can be reused multiple times, reducing resource consumption and environmental pollution in the logistics process.
Economy: The large-scale production and use of modular containers reduce production costs and logistics costs, and improve the economic benefits of enterprises.
Application scenarios:
It is a prefabricated integrated data center, which includes uninterruptible power supply UPS, intelligent temperature control products, cabinets and other facilities, which can be operated by only connecting water, electricity and network connections, and has flexible applications. Focus on rapid deployment scenarios in outdoor small computer rooms of operators and enterprises, and support the integration of standard and non-standard mainstream IT equipment.
Product parameters:
Complete-built unit parameter | Module Specifications (Height X Width X Depth) | 2896mmX2438mmX6058mm |
Total load power | ≤8kW | |
Number of cabinets | N63 cabinets: 13 pcs;N66 cabinets: 6 pcs;N68 cabinets: 4 pcs | |
Waterproof and dustproof | Standard IP55 protection | |
Seismic grade | GR-63-CORE Zone3 (equivalent to 9 Intensity Seismic Resistance) | |
operating temperature | -20℃~+55℃ | |
Electrical parameters | Input power system | Three-phase four-wire + PE, 380V/400V/415V, 50Hz/60Hz |
Lightning protection level | Class C, nominal 20kA (8/20μs), 40kA maximum (8/20μs) | |
Power supply and distribution capacity specifications | ≤ 24KW (actual configuration 18KW, module 5+1 redundancy) | |
Battery Specifications | BoostLi lithium battery | |
Standby time | 3h | |
Temperature control parameters | temperature control system | Air-heat integrated machine 3kw/pcs (4 + 1 redundancy) |
refrigerant | R134A | |
Monitoring parameters | Mobile operation and maintenance | Support APP remote mobile operation and maintenance, unattended |
Fire parameters | fire protection system | CE version automatic fire system, automatic fire detection, with emergency release function |
Fire gas | HFC227-ea |
