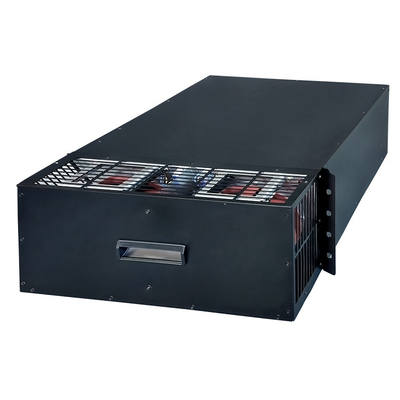

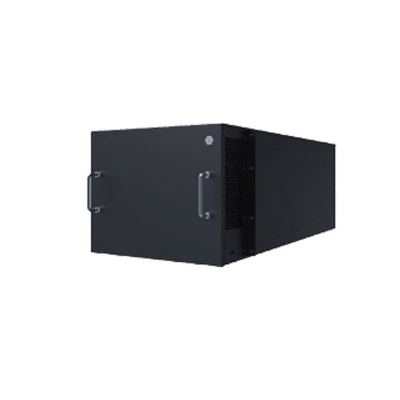

Frame Type Precision Air Conditioner Single Phase 3.5KW - 12.5KW For Server Room
| Place of Origin | China |
|---|---|
| Brand Name | lpsrits |
| Minimum Order Quantity | 1 set |
| Price | bargaining |
| Packaging Details | CDA rack type precision air conditioner, CDA series 3.5-12.5KW is a cabinet level temperature control product specially designed for the high heat density data center. It is placed close to the heat source on the cabinet rack, which can accurately handle t |
| Delivery Time | 5 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting | Floor Standing | Type | Cabinet Air Conditioner |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas | Operating Voltage | 380/400 VAC,220V |
| Application | Computer Room | Fan Type | Direct Driven Or Belt Driven |
| High Light | Frame Type Precision Air Conditioner,3.5KW Precision Air Conditioner,12.5KW Air Conditioner For Server Room |
||
Product Description
Frame Type Precision Air Conditioner CDA Series 3.5-12.5KW
| CDArack air-conditioner | ||||
| model | CDA0004 | CDA0005 | CDA0008 | CDA0013 |
| number,phase | 1.5 ,single | 2,single | 3,single | 5,single |
| performance parameters | ||||
| Refrigerating capacity(kW) | 3.5 | 5 | 7.5 | 12.5 |
|
Sensible cooling capacity (kW) |
3.5 | 5 | 7.5 | 12.5 |
| Internal air volume(m3/h) | 800 | 1100 | 1650 | 2200 |
| Heating capacity (kW) | 1 | 1 | 2 | 2 |
| Humidification amount(kg) | 1 | 1 | 1.5 | 3 |
| Structural parameters | ||||
| 400mm depth series-indoor parameter-w*d*h(mm) | ||||
| size | 442*395*351 | 442*395*351 | 442*395*529 | 442*395*620 |
| weight(kg ) | 25 | 30 | 45 | 52 |
| 760mm depth series-indoor parameter-w*d*h(mm) | ||||
| size | 442*714*218 | 442*714*218 | 442*714*351 | 442*714*440 |
| weight(kg) | 25 | 30 | 45 | 52 |
| ndoor parameter-w*d*h(mm) | ||||
| size | 794*310*537 | 794*310*537 | 1045*431*760 | 1043*431*1375 |
| weight(kg) | 30 | 34 | 60 | 85 |
|
Remrk1:The standard working condition is that the indoor ambient temperature is 35 ℃, the wet bulb temperature is 20 ℃, and the outdoor ambient temperature is 35 ℃ |
||||
