Cabinet Precision Cooling Systems PID Control Data Room Air Conditioner
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | CDA 0004 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Number of pcs, number of phases: 1.5 hp, single phase |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Unit Depth (mm) | 400 | Main Power Supply | 220/1ph~50HZ |
|---|---|---|---|
| Air Supply Method | Three Side Air Supply | Liquid Tube | 9.52 |
| High Light | Cabinet Precision Cooling Systems,PID Control Precision Cooling Systems,PID Control Data Room Air Conditioner |
||
Product Description

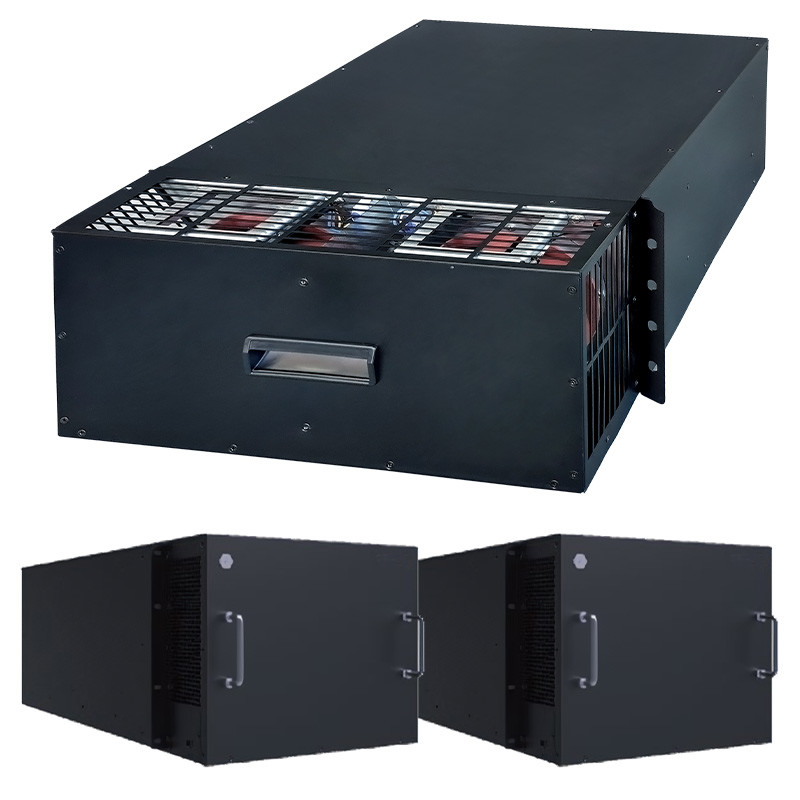

LIRUISI Cooling System black Module Room Precision Air Conditioning
Product introduction:
Precision air conditioning is a high-precision and energy-efficient air conditioning product, mainly used in environments with high requirements for precision and air quality, such as electronic manufacturing workshops, pharmaceutical manufacturers, and precision machinery manufacturers.
LIRUISI's CDA series rack air conditioner is a cabinet-level temperature control product designed for single-row systems in high-heat density data centers, which is placed close to the heat source on the cabinet rack.It can accurately handle the high sensible heat generated by the servers in the cabinet, effectively prevent the generation of local hot spots, and help the continuous development of green data centers.
Product advantage:
◎ The height of the 5kW model is only 5U, which saves the available space in the cabinet
◎ Support temperature management on the top of the cabinet to eliminate local hot spots
◎ Multiple drainage anti-backfill design to eliminate cabinet flooding
◎ Intelligent self-detection of refrigerant capacity, intelligent early warning
◎ High-efficiency inverter compressor, ultra-precise PID control technology
◎ Electronic expansion valve, smooth adjustment of throttle opening
◎ EC centrifugal fan, real-time on-demand adjustment of air volume output ratio
◎ Extremely wide grid adaptation, can meet ±20% voltage range
Product parameters:
| LIRUISI 【CAD Series Rack Cooling Module Refrigeration System】 | LIRUISI CAD Series Rack Mounted Cooling Module Refrigeration System [Inner Unit Size and Weight] | ||
| ndoor unit model | CDA0013 | Unit width (mm) | 444 |
| Unit depth (mm) | 400 | Unit depth (mm) | 395 |
| Main power supply | 220/1ph~50HZ | Unit height (mm) | 352 |
| Air supply method | Three side air supply | Weight (kg) | 25 |
| CDA series rack cooling module refrigeration system unit【Performance parameters】 | CDA series rack mounted cooling module refrigeration system [external unit performance parameters] | ||
| Cooling capacity (kW) | 3.5 | Outdoor unit model | CDT005SP |
| apparent cooling capacity | 3.5 | Unit width (mm) | 794 |
| Maximum working current of the unit A | 11.5 | Unit depth (mm) | 310 |
| Number of compressors | 1 | Unit height (mm) | 537 |
| Fan form | EC fan | Weight (kg) | 30 |
| Number of fans | 1 | CDA series rack mounted cooling module refrigeration system【Recommended power distribution specifications】 | |
| Circulating air volume (m3/h) | 800 | Recommended open | 16 |
| Heating capacity (kw) | 1 | Indoor unit power cord (mm2) | 3*2.5 |
| Humidification capacity (kg/h) | / | Outdoor unit power cord (mm2) | 3*1.5 |
| CDA series rack mounted cooling module refrigeration system [connection pipe size specifications] | |||
| liquid tube | 9.52 | ||
| trachea | 15.88 | ||
| Humidification inlet pipe | OD20*G3/4 | ||
| Unit water pump drain pipe | PU tube ID5 * OD8 | ||
| Unit natural drain pipe | Silicone hose ID10 * OD14 | ||
