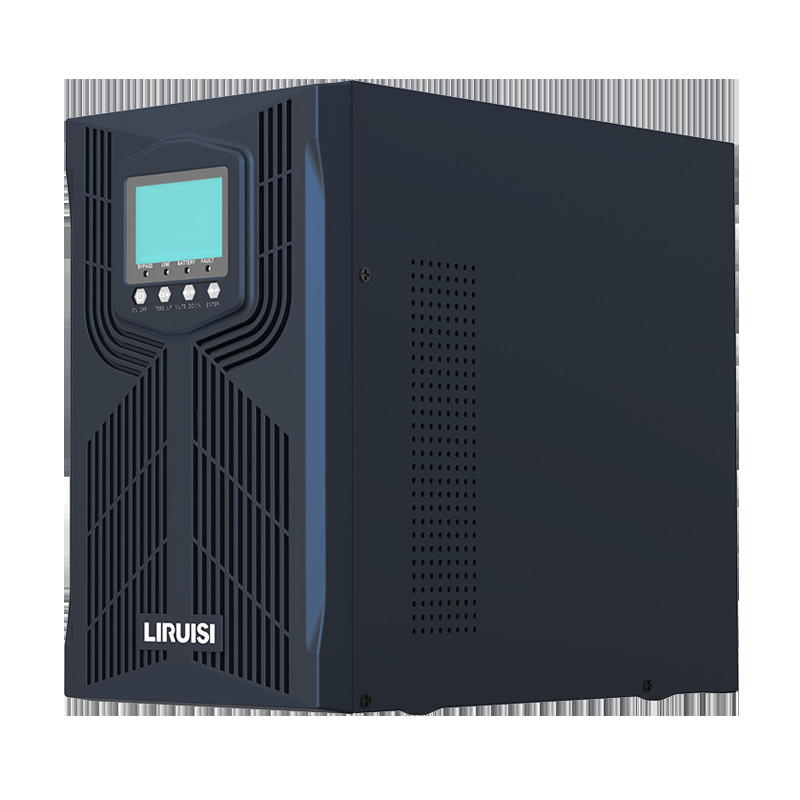

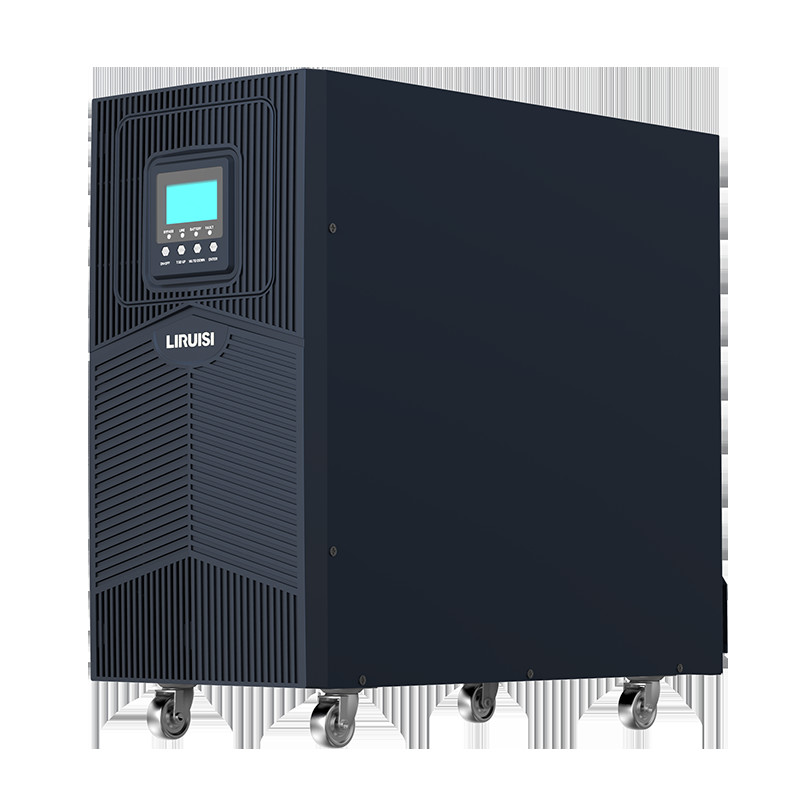

Networking High Frequency UPS Single Phase E Series 6kVA - 10kVA
| Place of Origin | China |
|---|---|
| Brand Name | lpsrits |
| Minimum Order Quantity | 1 set |
| Price | bargaining |
| Packaging Details | CDA rack type precision air conditioner, CDA series 3.5-12.5KW is a cabinet level temperature control product specially designed for the high heat density data center. It is placed close to the heat source on the cabinet rack, which can accurately handle t |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Phase | Single Phase | Application | Networking |
|---|---|---|---|
| Output Voltage | Three Phase 380VAC (3Ph + N) | Wave Form | Sine Wave THD<3%(Linear Load); Sine Wave THD<8%(Non-Linear Load) |
| Product Name | 100kva Ups On-Line Interactive Uninterrupted Power Supply | Transfer Time | 0 Ms |
| High Light | Networking High Frequency UPS,6kVA High Frequency UPS,10kVA UPS Single Phase |
||
Product Description
Advantages & Features
E6~10kVA on-line UPS features
Zero transfering time
Dual conversion pure online architecture, zero conversion time for battery mains power supply mode switching, support constant frequency output, and effectively ensure load power supply reliability
Adopt DSP digital control technology
Adopt advanced DSP digital control technology to provide stable and reliable sine wave power supply
Three level inverter technology
High efficiency and energy saving, less distortion, stronger load carrying capacity, suitable for various complex types of loads
Ultra wide input voltage frequency range
90v~300v extremely wide input voltage and 40~70hz frequency input range, compatible with harsh power environment, reduce battery discharge times and improve battery service life
Super load carrying capacity
The output power factor reaches 0.9125% of the rated power for 10 minutes. It can output 200/208/220/230/240vac 50/60hz and is widely applicable to various voltage and frequency systems
can be used with generators
The input voltage and frequency range are wide, which can effectively isolate the bad power generated by the generator and provide pure, safe and stable power supply for the load
High input power factor
Active power factor correction (PFC) technology is adopted, and the input power factor is more than 0.99, which effectively avoids power grid pollution and effectively reduces electricity expenditure
Reliable product design
All glass fiber double-sided circuit material, combined with large span components, is strong, corrosion-resistant and greatly improves environmental adaptability
Dust proof design
Reasonable air duct design and three proofing paint coating can effectively prevent dust pollutants from accumulating and eroding the circuit
Open design
The powerful DSP core and open design architecture make the machine more customizable, which is in line with the automation and intelligent monitoring system
technical specifications
| Model | E6K | E6KS | E10K | E10KS | |
|
rated frequency |
VA/W | 6kVA/5.4kW | 10kVA/9kW | ||
|
machine architecture
|
Dual conversion online UPS machine architecture | ||||
| Number of input and output phases | single in/single out | ||||
| input |
Number of input lines
|
Single phase two wire (L, n) + protective ground | |||
| input voltage range |
high voltageHV: L,N: 90~300VAC lower voltage LV: L,N 55~145VAC |
||||
| input frequency range | 40Hz-70Hz | ||||
| input power factor | ≥0.99 | ||||
| output | number of output lines | 单相两线(L,N)+保护地Single phase two wire (L, n) + protective ground | |||
| rated voltage |
高压版HV: 208/220/230/240VAC 低压版LV: 110/115/120/127VAC High voltage version hv: 208/220/230/240vac
LV version: 110/115/120/127vac
|
||||
| Output voltage accuracy | ±1% | ||||
| output frequency |
50/60±4Hz(锁相跟随市电) / 50/60Hz±0.1%(定频模式) 50/60 ± 4Hz (phase locked following mains) / 50/60hz ± 0.1% (constant frequency mode) |
||||
| output wave | 纯正弦波 pure sine wave | ||||
|
Output distortion (THDV%) |
<2%(线性负载)(linear load) | ||||
| <6%(非线性负载))(non-linear load0 | |||||
| overload capacity |
10分钟@105%~125%额定负载 1分钟@125%~150%额定负载 0.5秒@>150%额定负载 10min @105%~125% rated load
1 min @125%~150% rated load
0.5s @ >150% rated load
|
||||
| frequency | Mains mode | 93% | |||
| battery mode | 91% | ||||
|
battery&charger
|
battey voltage/①quantity |
144VDC/12 internal |
192/240VDC external |
192VDC/16 internal |
192/240VDC external |
| battery capacity | 12V/7AH | External battery decision | 12V/7AH | External battery decision | |
| back-up time | half load>6 mins | half load>6 mins | |||
| charging current |
Standard machine (built-in battery): 1A
Long life machine (external battery): 4A |
||||
| Structure shape | box style | Tower / rack | |||
| size |
E6ks:190 (W) *318 (H) *368 (d) mm
E10ks: 190 (W) X340 (H) x528 (d) mm
E6k:190 (W) X360 (H) x528 (d) mm
E10k: 190 (W) x470 (H) x534 (d) |
||||
| size |
UPS host: 438mm (W) x 88mm (2U) (H) x 500mm (d) without battery
Battery box: 438mm (W) x 132mm (3U) (H) x 500mm (d) |
||||
| weigt(kg) | 37 | 15.5 | 47.5 | 16.5 | |
| Human Machine Interface | LCD display | Display input / output voltage, frequency, load percentage, operating mode and machine status | |||
| communication interface | RS232standard RS232 | ||||
| Expansion card slot |
Optional network monitoring card, supporting PC, mobile phone remote monitoring, MODBUS and dry connection point card
|
||||
| Environment parameter | working temperature range | -10~45oC | |||
| working humidity range | 0-98%(non-condensing) | ||||
| noisy | <50dB @ 1 meters | ||||
Structure appearance
front panel
E6K(S)/E10K(S) front panel
E6KRS~E10KRS 2U rack-mountedUPS
noted
② Including panel size, panel length of different styles varies slightly
③ Other shapes and structures, input and output socket plug configuration can be customized. For details, please contact the sales representative
④ Technical parameters and indicators can be customized. Please contact the sales representative for details
