Online Uninterruptible Power Supply UPS Single Phase 10K - 400K Three In Three Out
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HP20KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard Accessories |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Type | On-line |
|---|---|---|---|
| Application | Security / Monitoring / Alarm | Protection | Overvoltage |
| Weight | 5kg | Phase | Single Phase |
| High Light | Online Uninterruptible Power Supply UPS,Single Phase Uninterruptible Power Supply UPS |
||
Product Description

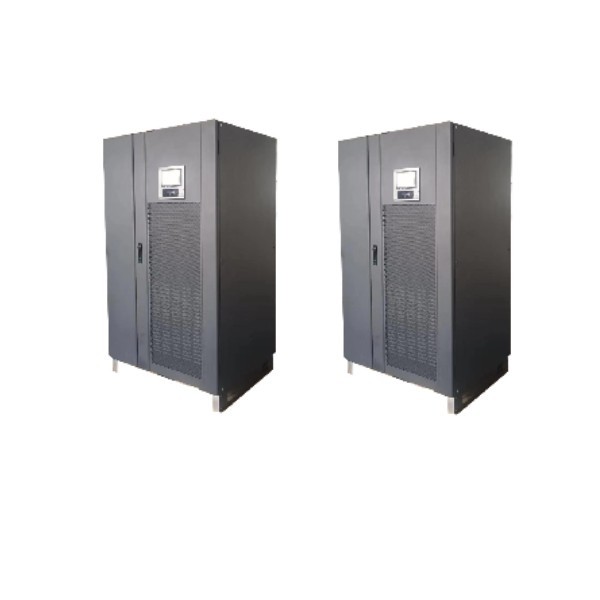

LIRUISI Tower Power Frequency UPS Products HP Series 10K-400K Three In And Three Out
Product Introduction:
HP series UPS has high reliability, high anti-interference, high fault tolerance function, can protect against lightning strikes, high surge, strong overload capacity and other characteristics, rated capacity from 10 ~ 400KVA, this series of products can be both parallel, hot backup can also be used standalone, suitable for banks, securities and other institutions of data centers, communications, transportation power, industrial automation and other industries.
How it works:
Three-in, three-out, double-conversion online working power frequency machine operation
Product Features:
DP series 33 series - power frequency UPS power supply, inverter adopts DSP, MCU and DDC real-time processing of full digital vector control technology, accurately control the machine parameters and comprehensive control.
Product parameters:
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] | |
| Model | HP20KVA |
| Nominal capacity (KW) | 16 |
| Single-phase input maximum current (A) | 38 |
| Working method and principle | In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated |
| Input power factor | 0.8/0.9 (12 pulses)/0.95 (with active filter) |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50HZ±10%,60HZ±10% |
| voltage harmonic distortion | <5% |
| soft start | 0~100% 5 sec |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery | |
| Maximum discharge current (A) | 56 |
| Number of batteries per group | 12V type 32 sections or 2V type 192 sections |
| Nominal battery voltage | 384VDC(348V-384V可设);160~400KVA:384/396VDC |
| float voltage | 432VDC |
| charging current | 6~ 30A (adjustable) |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass | |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50HZ±5%；60HZ±5% |
| Transition time | 0ms |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system | |
| Communication interface | RS232, RS485, Dry Contacts, Smart Slots |
| Operating temperature | 0~40℃ |
| Relative humidity (non-condensing) | 0%~90% |
| Operating height (max) | < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters) |
| Cooling method | forced ventilation |
| Protection class | IP20 |
| Box color | White or black |
| Easy to maintain | Front/top/side |
