200KVA Server Room Power Supply High Frequency Uninterrupted Power System
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HP200KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard Accessories |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Input Voltage | 100-240VAC |
|---|---|---|---|
| Product Name | Online UPS Systems,HBC High Frequency Singal Phrase Pure Sine Wave 1kva UPS Power For PC | Battery Type | Lead Acid Battery |
| Wave Form | Pure Sine Wave | Capacity | 1KVA-30KVA |
| High Light | High Frequency Server Room Power Supply,200KVA Server Room Power Supply,200KVA Uninterrupted Power System |
||
Product Description

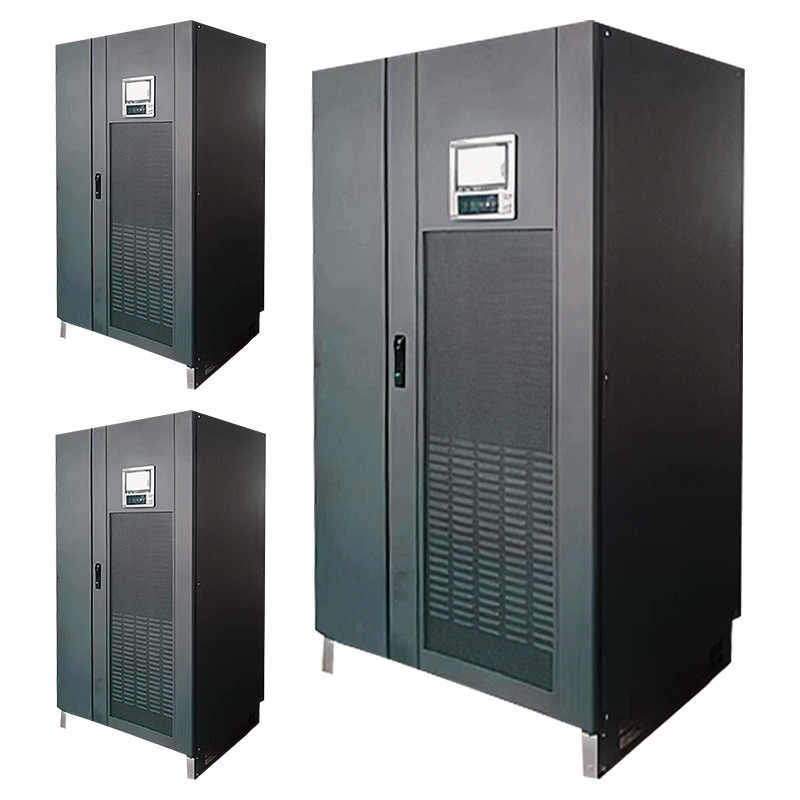

LIRUISI Uninterruptible Power Supply Power Frequency Machine Series HP200KVA
Product Introduction:
1. Low cost: The UPS uninterruptible power supply system of the power frequency machine does not need additional equipment and can be directly connected to the power frequency machine, which is very convenient to use and low cost.
2. Short charging time: The UPS uninterruptible power supply system of the power frequency machine can be charged by directly connecting to the main power supply or battery, and the charging time is shorter, and the power can be restored faster.
How it works:
Three-in, three-out, double-conversion online working power frequency machine operation.
Product Features:
Advanced IGBT high-frequency pulse width modulation (PWM) technology combined to reduce system noise and power loss, ensuring that customers can obtain high-quality voltage output and maximum efficiency under various working conditions.Dual conversion, pure online sine wave output, whether in mains mode or battery mode, can output a pure sine wave power supply with low distortion, providing the best power guarantee for the user's load equipment.
Product parameters:
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] | |
| Model | HP200KVA |
| Nominal capacity (KW) | 160 |
| Single-phase input maximum current (A) | 379 |
| Working method and principle | In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated |
| Input power factor | 0.8/0.9 (12 pulses)/0.95 (with active filter) |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50HZ±10%,60HZ±10% |
| voltage harmonic distortion | <5% |
| soft start | 0~100% 5 sec |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery | |
| Maximum discharge current (A) | 546 |
| Number of batteries per group | 12V type 32 sections or 2V type 192 sections |
| Nominal battery voltage | 384VDC(348V-384V可设);160~400KVA:384/396VDC |
| float voltage | 432VDC |
| charging current | 6~ 30A (adjustable) |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass | |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50HZ±5%；60HZ±5% |
| Transition time | 0ms |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system | |
| Communication interface | RS232, RS485, Dry Contacts, Smart Slots |
| Operating temperature | 0~40℃ |
| Relative humidity (non-condensing) | 0%~90% |
| Operating height (max) | < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters) |
| Cooling method | forced ventilation |
| Protection class | IP20 |
| Box color | White or black |
| Easy to maintain | Front/top/side |
