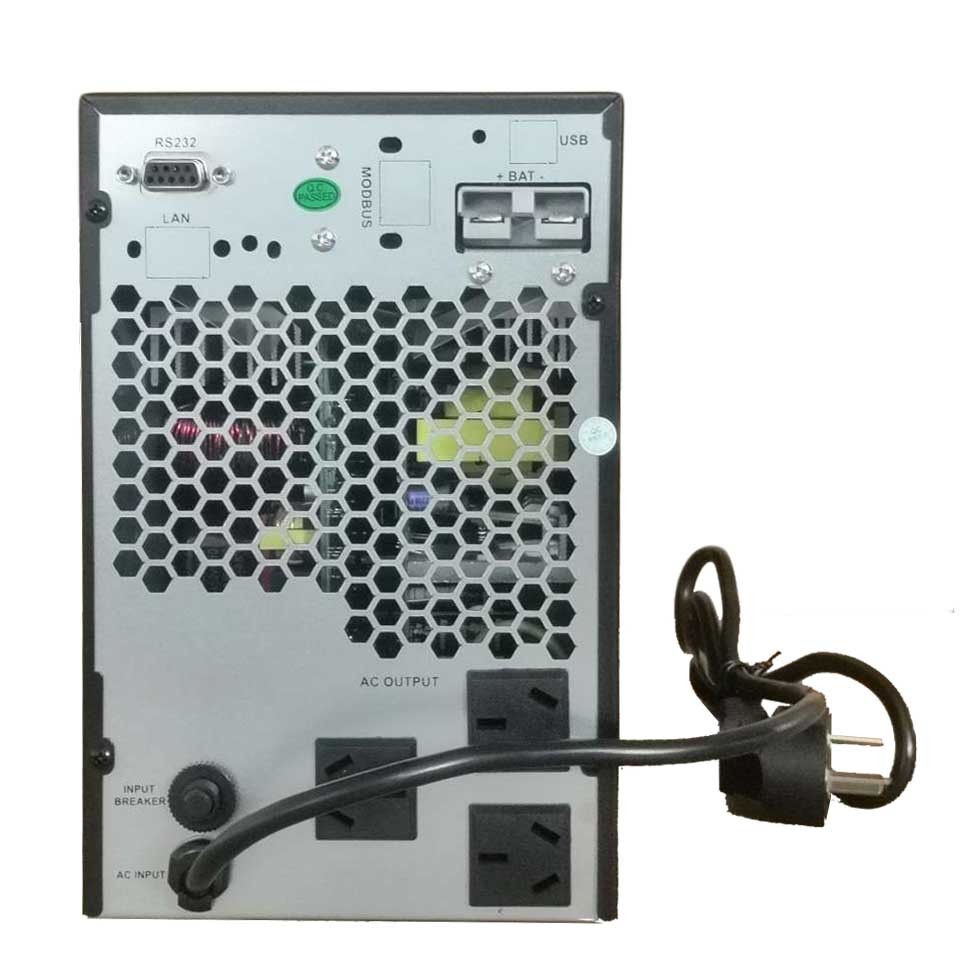

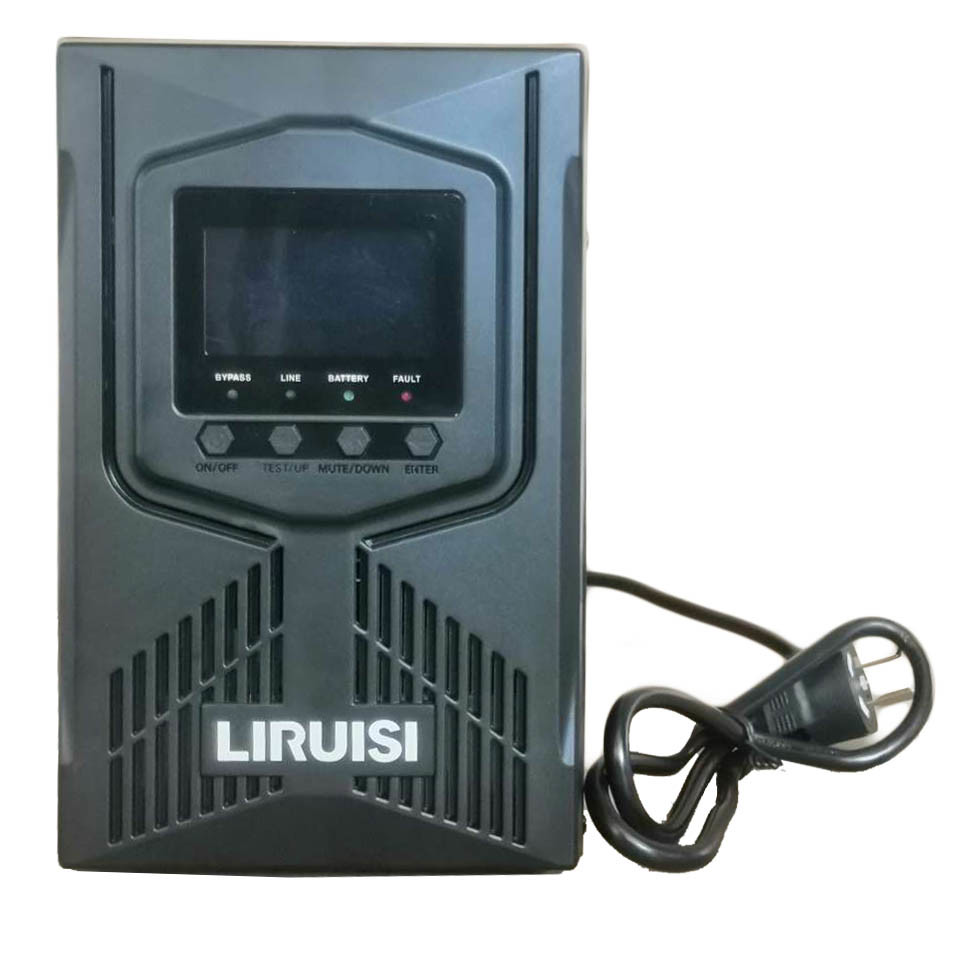

1kVA 800W Online Modular Uninterruptible Power Supply High Frequency For Server
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | E1KS |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Rackmount size: 3K(R): 438mm(W) x 88mm(2U)(H) x 500mm(D) Built-in battery includedAll other models of length/label: 438mm(W) x 88mm(2U)(H) x 360mm(D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Specifications | 1kVA/800W | Application | Security / Monitoring / Alarm |
|---|---|---|---|
| Protection | Overvoltage | Product Name | Online UPS Systems |
| Battery Type | Lead Acid Battery | Machine Architecture | Dual Conversion Online UPS |
| High Light | 800W Modular Uninterruptible Power Supply,Server Modular Uninterruptible Power Supply,High Frequency Online UPS 1KVA |
||
Product Description
LIRUISI High Frequency UPS Room Dedicated Uninterruptible Power Supply E1KS
Product introduction:
Liruis E1KS [single in, single out] UPS is a high-end low-power online UPS product specially proposed for the needs of small power supply environment of enterprises and institutions, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.
way of working:
Single in single out, double conversion online work order in single out operation
Product Features:
High reliability: High-frequency tower UPS uninterruptible power supply has multiple protection functions, such as overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, etc., which can automatically cut off the power supply and protect the equipment in the event of power failure or abnormality.
| Single Input Single Output High Frequency Tower UPS System | |
| Product model | Single-phase electrical input, single-phase electrical output |
| E1KS | |
| Specifications | 1kVA/800W |
| Technical parameters | |
| Machine Architecture | Dual Conversion Online UPS |
| Input and output phases | Single Phase Input/Single Phase Output |
| Input voltage range | Zero fire phase voltage: 90~ 300VAC |
| Input frequency range | 40Hz-70Hz |
| Input power factor | ≥0.99 |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Overload capacity | 1min@105%~125% rated load, 10s@125%~150% rated load, 0.5S@>150% rated load |
| Battery Voltage/Quantity | 36VDC external |
| Battery capacity | External battery decision |
| Charging current | Standard machine (built-in battery): 1A, long-term machine (external battery): 4A |
| Tower size | 1KS: 145(W)x220(H)x250(L)mm, 1K, 2KS: 145(W)x220(H)x318(L)mm, 2K: 145(W)x220(H)x390(L) mm3K/3KS: 190(W) x 318(H) x 368(L) mm |
