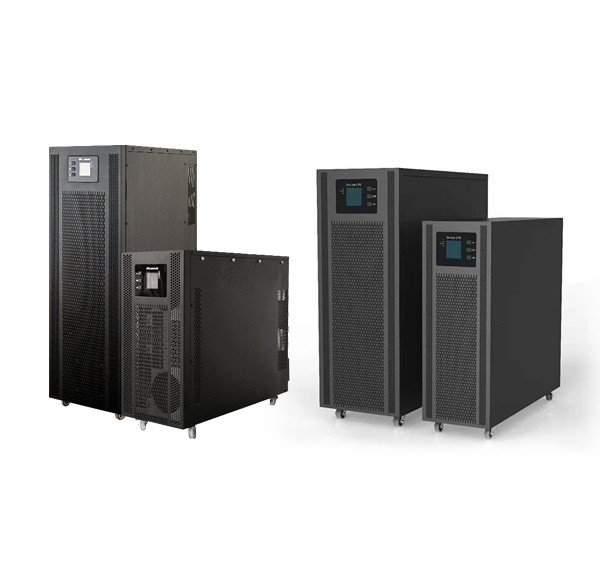

HF Tower Modular Uninterruptible Power Supply 60 KVA UPS Battery For Computer
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HY 60KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Dimensions DxWxH: 703 x 300 x 932 mm |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Type | Portable Mini Solar Ups Power |
|---|---|---|---|
| Application | Computer | Color | Black Blue UPS |
| High Light | HF Modular Uninterruptible Power Supply,60 KVA Modular Uninterruptible Power Supply,Computer 60 KVA UPS Battery |
||
Product Description
Product introduction:
HY60KVA is equipped with dual DSP controllers, rectification, inverter, charging, discharge all realize DSP digital control, power module independent current sharing control, no single point of failure risk, is a collection of today's power electronics cutting-edge technology in one UPS high-end power products.
way of working:
Three in three out, double conversion online work three in three out operation.
Choose a high-frequency tower-type uninterruptible power supply (UPS) with a capacity of 60kVA according to the following aspects:
Load type: Choose an appropriate UPS according to the actual load type, such as computer equipment, communication equipment, network equipment, etc.
Output waveform: Choose the output waveform of pure sine wave or nearly pure sine wave according to the actual demand to ensure the stability and reliability of the equipment.
| Three in three out high frequency tower UPS system | |
| Product model | Three-phase electrical input, three-phase electrical output |
| HY60KVA | |
| Specifications | 54KW |
| Technical parameters | |
| input voltage | 380V/400V/415V |
| Input method | single in single out/three in single out/three in three out |
| power factor | >0.99 |
| current distortion rate | <3% |
| Voltage range | 25%~-25%, full load / 25%~-40%, linear derating between 100% and 70% load capacity |
| Frequency range | 40-70HZ |
| voltage accuracy | ± 0.5% (balanced load) |
| Dynamic voltage transient | 2% (0~ 100% load change |
| voltage distortion rate | <0.5% (linear load) / THD<3% (nonlinear load) |
| peak ratio | 3:01:00 |
| overload capacity | 105% long-term work / 110%, 1h / 125%, 10min / 150%, 1min / >150%, immediate shutdown |
| System efficiency | Normal mode: 95%, Economic mode: 9 |
| Battery Mode Efficiency | 95% |
| Battery configuration | 12V, X32 (±16~±20 knots optional) |
| Size DxWxH | 703 x 300 x 932 mm |
