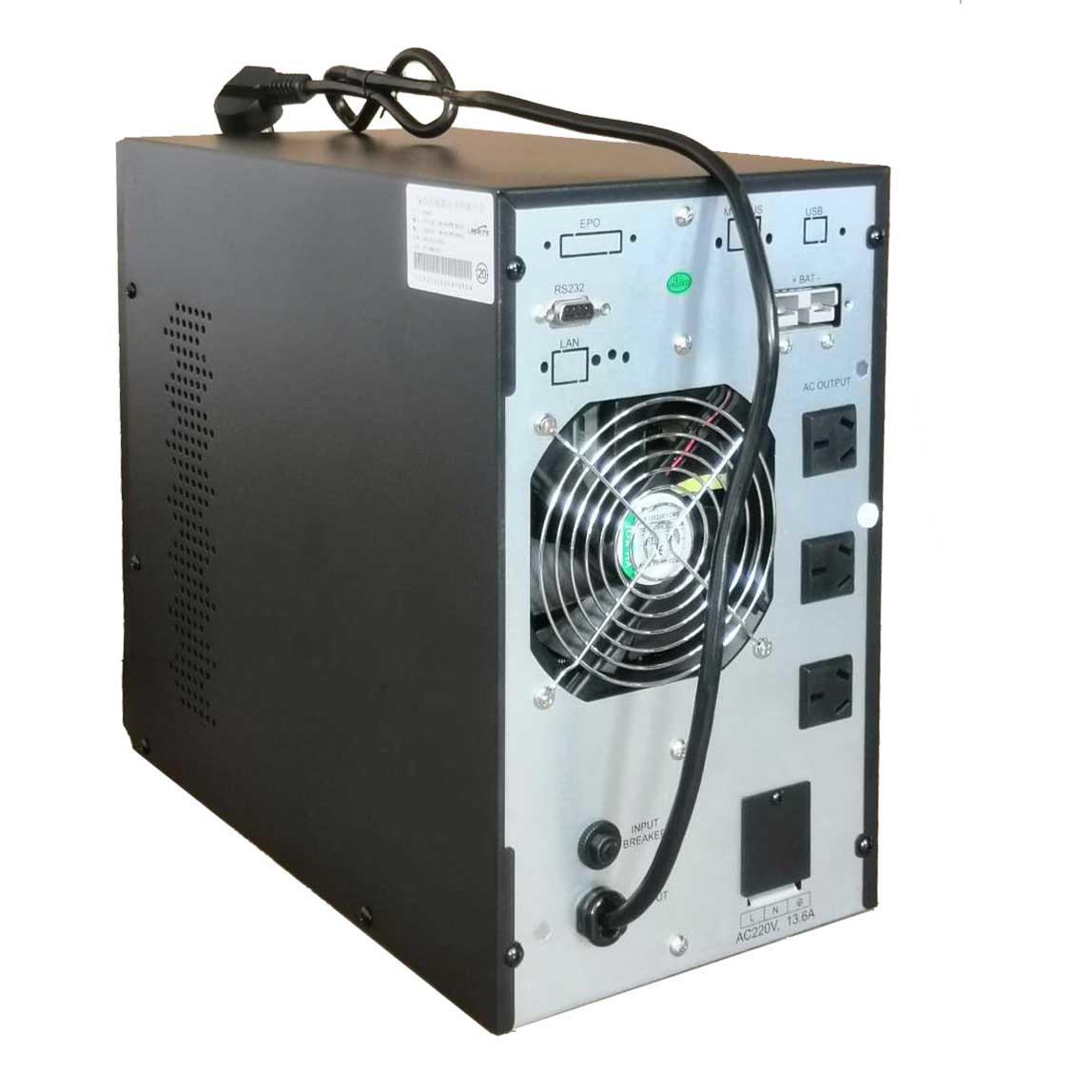

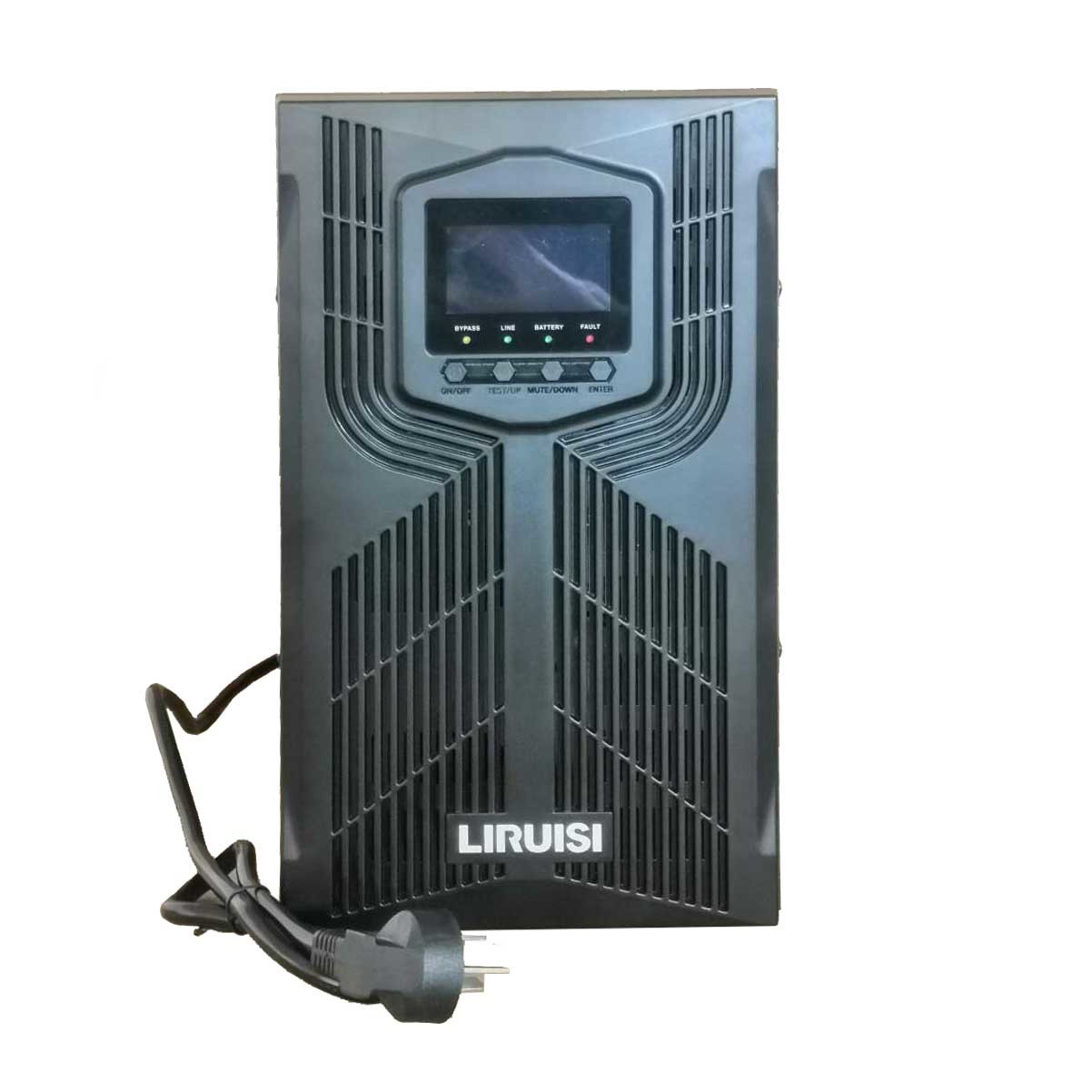

Online Modular Uninterruptible Power Supply Tower UPS System 10kVA / 9kW
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | E10K |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | UPS Main Unit: 438mm (W) x 88mm(2U)(H) x 500mm (D) Without batteryBattery Box: 438mm(W) x 132mm(3U)(H) x 500mm(D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Application | Security / Monitoring / Alarm |
|---|---|---|---|
| Protection | Overvoltage | Input Frequency Range | 40Hz-70Hz |
| Product Name | Online UPS Systems | Battery Type | Valve Control Free Maintenance Free Lead-acid Battery |
| High Light | Online Modular Uninterruptible Power Supply,Modular Uninterruptible Power Supply 9kW,10kVA Tower UPS System |
||
Product Description
LIRUISI High Frequency Tower Ups Uninterruptible Power Supply E10K
Product introduction:
Liruisi E10K [single in, single out] UPS is a high-end low-power online UPS product specially proposed for the needs of small power supply environment of enterprises and institutions, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.
way of working:
Single in single out, double conversion online work order in single out operation.
Product Features:
Battery protection: intelligent battery management system, realizing functions such as float charging, voltage balance, automatic temperature compensation, overcharge protection, over-discharge protection, etc., protecting battery life.
| Single Input Single Output High Frequency Tower UPS System | |
| Product model | Single-phase electrical input, single-phase electrical output |
| E10K | |
| Specifications | 10kVA/9kW |
| Technical parameters | |
| Machine Architecture | Dual Conversion Online UPS |
| Input and output phases | Single Phase Input/Single Phase Output |
| Input voltage range | High voltage version HV: zero fire phase voltage: 90~300VAC / low voltage version LV: zero fire phase voltage: 55~145VAC |
| Input frequency range | 40Hz-70Hz |
| Input power factor | ≥0.99 |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | HV in high-voltage version: 208/220/230/240VAC/LV in low-voltage version: 110/115/120/127VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Overload capacity | 1min@105%~125% rated load, 10s@125%~150% rated load, 0.5S@>150% rated load |
| Battery Voltage/Quantity | 192VDC/16 Section (Internal) |
| Battery capacity | 12V7AH |
| Charging current | Standard machine (built-in battery): 1A, long-term machine (external battery): 4A |
| Tower size | E10K: 190(W)X470(H)x534(D) |
