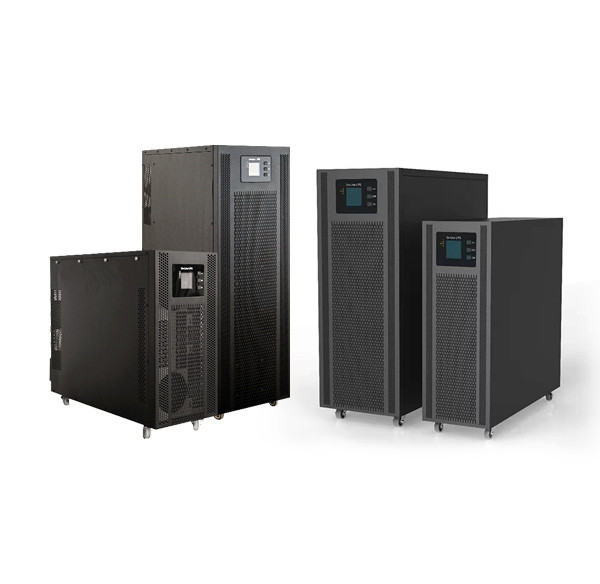

Computer Room Modular Uninterruptible Power Supply HF Online UPS Unit 60KVA
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HY60KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Size DxWxH:865x250x862 |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Type | 12v Battery Charger Power Supply UPS Function 13.8v 55w |
|---|---|---|---|
| Protection | Lightning | Input Voltage | 100-240VAC |
| Transfer Time | 0ms | Display | LCD+LED |
| High Light | Computer Room Modular Uninterruptible Power Supply,60KVA Modular Uninterruptible Power Supply,HF Online UPS Unit |
||
Product Description
LIRUISI UPS Uninterruptible Power Supply For Computer Room HF HY Series 60KVA
Product introduction:
This series of UPS is three-in, three-out UPS, HY 60KVA is convenient for users to configure flexibly. This series of UPS can almost completely solve all power supply problems, such as power failure, mains high voltage, mains low voltage, voltage instantaneous drop, amplitude reduction oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter interference, frequency fluctuation and other power problems. This product can be used in a wide range of applications, from computer equipment to communication systems and automatic equipment.
way of working:
Three in three out, double conversion online work three in three out operation.
Product Features:
HY series 33 series-high-frequency UPS power supply, equipped with dual DSP controller, rectification, inverter, charging, discharge all realize DSP digital control, power module independent current sharing control, no single point of failure risk, is a collection of today's power electronics cutting-edge technology in one of the high-end power products. The innovative design results in unmatched reliability and performance. The extremely high input power factor and very low input current distortion rate ensure the green and environmental protection of the product, and the extremely high efficiency of the whole machine ensures the energy saving of the product. This series of products can run 4 machines directly in parallel.
| Three in three out high frequency tower UPS system | |
| Product model | Three-phase electrical input, three-phase electrical output |
| HY60KVA | |
| Specifications | 60kVA |
| Technical parameters | |
| input voltage | 380/400/415Vac |
| Input method | Three-phase five-wire, three-phase input 384V |
| power factor | >0.99 |
| Input current harmonics (THDi) | ≤ 3% (100% linear load) |
| Bypass voltage range | 220Vac cap: 25% (optional +10%, +15%, +20%) 230Vac cap: 20% (optional +10%, +15%) 240Vac cap:15% (optional +10%) lower limit:-45% (optional -10%, -20%, -30%) |
| Wiring system | Three-phase five-wire, three-phase input 384V |
| Bypass sync tracking range | ±10% Hz |
| Generator access | support |
| output voltage | 380/400/415Vac ±1% |
| Output power factor | 0.9 & 1 |
| overload capacity | 110% load, turn bypass after 60min; 125% load, turn bypass after 10min; 150% load, for 1 min and then turn to bypass |
| Complete-built unit efficiency | 0.96 |
| protection function | Battery undervoltage, output over-undervoltage, short circuit, overload, overtemperature, fan failure alarm, lightning protection |
| Communication function | CAN, RS485, FE, LBS, Parallel Card,SNMP adapter (optional), relay card (optional) |
| Size DxWxH | 865x250x862 |
