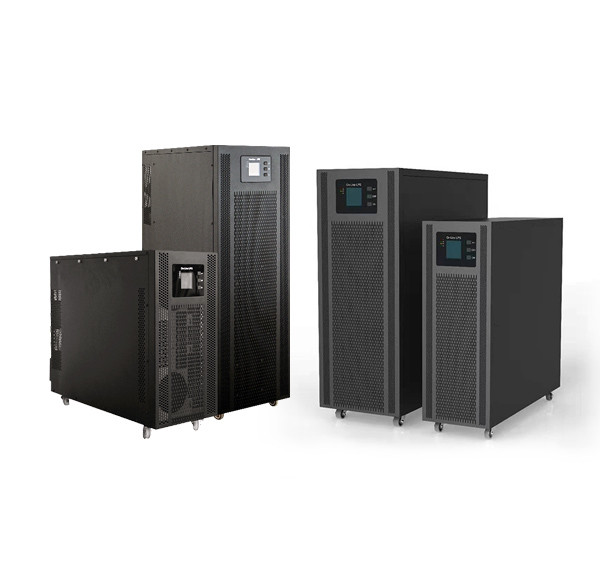

200KVA Modular Uninterruptible Power Supply HF Computer Room Three Phase Online UPS
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HY200KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Size DxWxH:850x440x1200 |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Type | 12v Battery Charger Power Supply UPS Function 13.8v 55w |
|---|---|---|---|
| Protection | Lightning | Input Voltage | 100-240VAC |
| Transfer Time | 0ms | Display | LCD+LED |
| High Light | 200KVA Modular Uninterruptible Power Supply,Three Phase Modular Uninterruptible Power Supply,HF Three Phase Online UPS |
||
Product Description
LIRUISI UPS Uninterruptible Power Supply For Computer Room HF HY Series 200KVA
Product introduction:
This series of UPS is three-in, three-out UPS, HY 60KVA is convenient for users to configure flexibly. This series of UPS can almost completely solve all power supply problems, such as power failure, mains high voltage, mains low voltage, voltage instantaneous drop, amplitude reduction oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter interference, frequency fluctuation and other power problems. This product can be used in a wide range of applications, from computer equipment to communication systems and automatic equipment.
way of working:
Three in three out, double conversion online work three in three out operation.
Uninterruptible power supply is a relatively common power supply equipment, which is widely used in industrial, medical, telecommunications, commercial, household and other fields. Its main function is to ensure the uninterrupted power supply of the equipment in the case of abnormal grid voltage or power failure, and prevent equipment loss or data loss caused by power failure.
| Three in three out high frequency tower UPS system | |
| Product model | Three-phase electrical input, three-phase electrical output |
| HY200KVA | |
| Specifications | 200kVA |
| Technical parameters | |
| input voltage | 380/400/415Vac |
| Input method | Three-phase five-wire, three-phase input 384V |
| power factor | >0.99 |
| Input current harmonics (THDi) | ≤ 3% (100% linear load) |
| Bypass voltage range | 220Vac cap: 25% (optional +10%, +15%, +20%) 230Vac cap: 20% (optional +10%, +15%) 240Vac cap:15% (optional +10%) lower limit:-45% (optional -10%, -20%, -30%) |
| Wiring system | Three-phase five-wire, three-phase input 384V |
| Bypass sync tracking range | ±10% Hz |
| Generator access | support |
| output voltage | 380/400/415Vac ±1% |
| Output power factor | 0.9 & 1 |
| overload capacity | 110% load, turn bypass after 60min; 125% load, turn bypass after 10min; 150% load, for 1 min and then turn to bypass |
| Complete-built unit efficiency | 0.96 |
| protection function | Battery undervoltage, output over-undervoltage, short circuit, overload, overtemperature, fan failure alarm, lightning protection |
| Communication function | CAN, RS485, FE, LBS, Parallel Card,SNMP adapter (optional), relay card (optional) |
| Size DxWxH | 850x440x1200 |
