Tower Power UPS Uninterruptible Power Supply DP Series 10kVA For Server Room

Place of Origin China
Brand Name LIRUISI
Model Number 10kVA
Minimum Order Quantity 1 set
Price negotiation
Packaging Details Size: 248 (W) 616 (H) 572 (D)
Delivery Time 8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 9999 units

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Security / Monitoring / Alarm Phase Single Phase
Input Voltage 100-240VAC Product Name Online UPS Systems
Battery Type Lead Acid Battery Wave Form Pure Sine Wave
Transfer Time 0ms Display LCD+LED
High Light

Tower Power UPS Uninterruptible Power Supply

,

10kVA UPS Uninterruptible Power Supply

,

10kVA UPS For Server Room

Leave a Message
Product Description

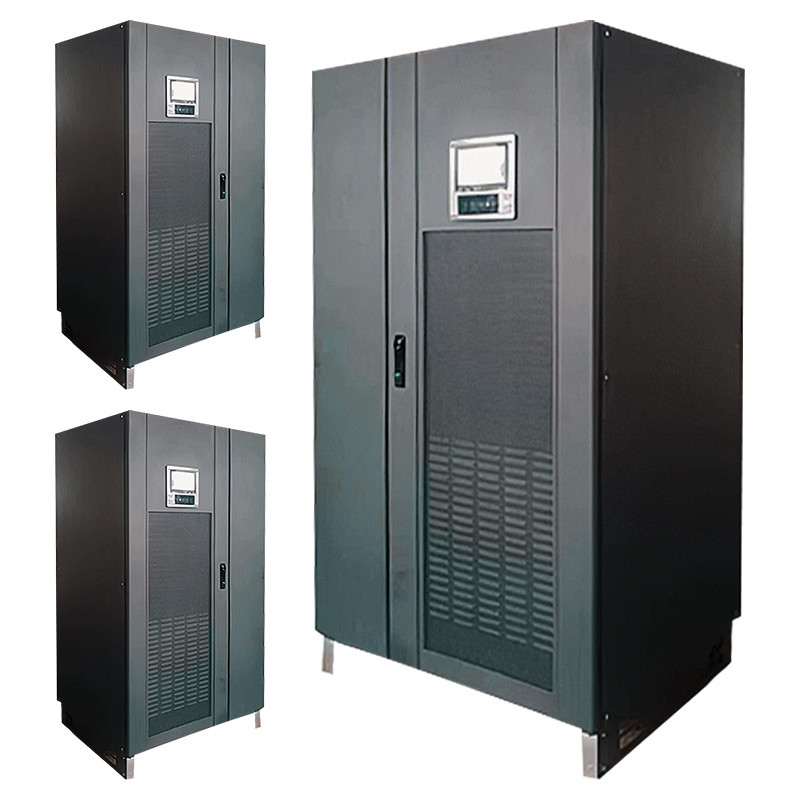

LIRUISI Tower Power Machine UPS Uninterruptible Power Supply DP Series 10kVA

Product introduction:

The main role of an uninterruptible power supply is to protect electronic equipment from power failure, ensure the normal operation of equipment and data continuity.



way of working:

Three in three out, double conversion online working power frequency machine operation



When using UPS, the following actions can be taken:

Choose the right UPS: Choose the right UPS according to the power and demand of the equipment to ensure that the UPS can provide a stable power supply for the equipment. Generally, the power of the UPS should be greater than the capacity of the device.




Product parameters:

HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system]
Model HP10KVA
Nominal capacity (KW) 8
Single-phase input maximum current (A) 19
Working method and principle In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated
Input power factor 0.8/0.9 (12 pulses)/0.95 (with active filter)
Phase number Three-phase + N + G
Nominal voltage 380VAC±25%
Nominal frequency 50HZ±10%,60HZ±10%
voltage harmonic distortion <5%
soft start 0~100% 5 sec
HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery
Maximum discharge current (A) 28
Number of batteries per group 12V type 32 sections or 2V type 192 sections
Nominal battery voltage 384VDC(348V-384V可设);160~400KVA:384/396VDC
float voltage 432VDC
charging current 6~ 30A (adjustable)
HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass
Phase number Three-phase + N + G
Nominal voltage 380VAC±15%
Nominal frequency 50HZ±5%;60HZ±5%
Transition time 0ms
HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system
Communication interface RS232, RS485, Dry Contacts, Smart Slots
Operating temperature 0~40℃
Relative humidity (non-condensing) 0%~90%
Operating height (max) < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters)
Cooling method forced ventilation
Protection class IP20
Box color White or black
Easy to maintain Front/top/side
