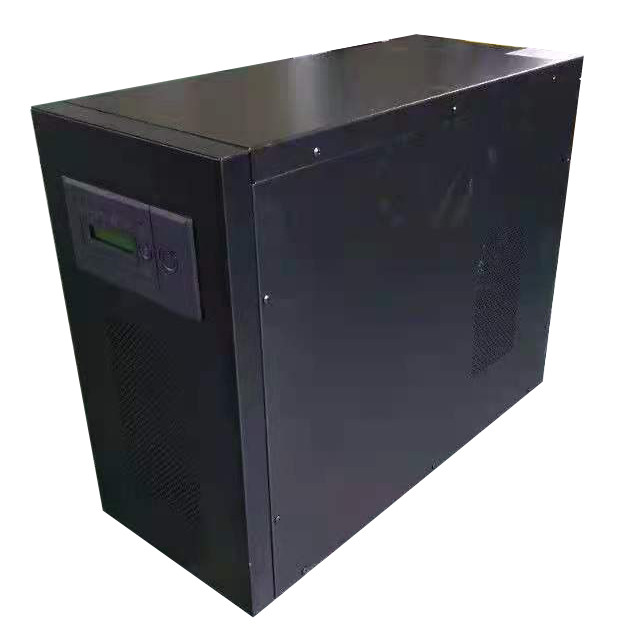

100 - 240VAC UPS Uninterruptible Power Supply 6KVA 4.8KW Single Phase Online UPS
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | 6k |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Size: 248 (W) 616 (H) 572 (D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Security / Monitoring / Alarm | Phase | Single Phase |
|---|---|---|---|
| Input Voltage | 100-240VAC | Product Name | Online UPS Systems |
| Battery Type | Lead Acid Battery | Wave Form | Pure Sine Wave |
| Transfer Time | 0ms | Display | LCD+LED |
| High Light | 240VAC UPS Uninterruptible Power Supply,6KVA UPS Uninterruptible Power Supply,4.8KW Single Phase Online UPS |
||
Product Description
Product introduction:
Rate drift, etc., to ensure the stability and reliability of equipment operation. This series of UPS adopts digital control technology, which can realize precise control of output voltage, and has the characteristics of high efficiency, energy saving, high reliability, and strong load capacity. At the same time, this series of UPS also has functions such as double conversion on-line, pure sine waveform output, automatic battery test, intelligent battery management, and multiple protections, which ensure the safe and stable operation of the equipment. In short, this series of UPS is a high-performance, high-reliability backup power supply that can provide users with comprehensive power protection. equipment.
way of working:
Three in three out, double conversion online working power frequency machine operation
| Power frequency three-in and three-out UPS system | ||
| Model | 6K | |
| rated capacity | P.F=0.8 | 6KVA/4.8KW |
| Technical parameters | ||
| input | voltage | 170~ 270V (phase voltage) |
| frequency | 50 Hz / 60 Hz ± 3 Hz | |
| Phase number | Single-phase or three-phase four-wire 380/220V | |
| battery | DC voltage | 192 Vdc |
| Standby time | Depends on battery capacity configuration | |
| Charging time | It can be recharged to 90% full potential 10 hours after full discharge | |
| protect | Low voltage automatic shutdown | |
| output | voltage | 1ψ2 W 220V ； 1ψ3 W 220V |
| frequency | 60 Hz/50 Hz | |
| voltage stability | ±1% | |
| efficiency | Complete-built unit | > 83 % |
| Inverter | > 90 % | |
| Indicator light | LED status | 1. Input power (bypass or main) normal (green light), 2. Inverter normal (green light) 3. Load powered by bypass (orange), 4. UPS abnormal (red), 5. Output overload (orange), 6. Battery low voltage (orange) |
| LCD status | Rated capacity, I/BYPASS voltage, I/BYPASS frequency, O/P voltage, O/P frequency, battery voltage, load, historical faults, customer service calls, working status, abnormal information, etc | |
| Communication port | RS232 bidirectional communication port | |
| Noise | 1 meter distance | < 55 dB |
| size | width | 248 |
| high | 616 | |
| deep | 572 | |
