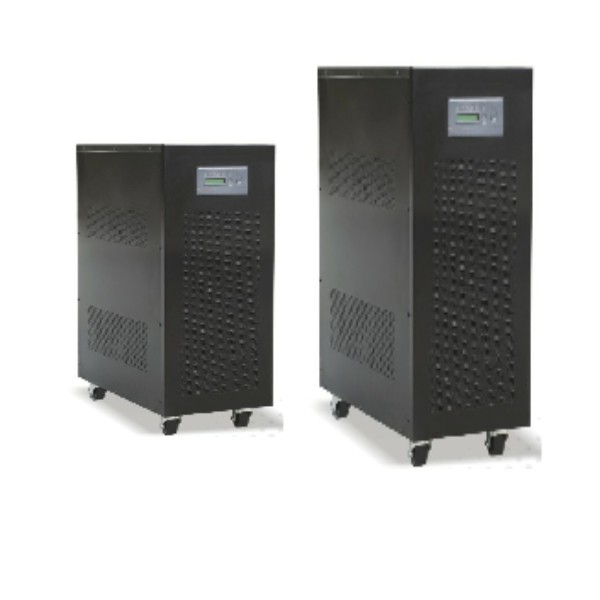

30KVA 24KW UPS Uninterruptible Power Supply Three In Three Out Power Frequency
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | 30k |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Size: 470(W) 980 (H) 785(D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Security / Monitoring / Alarm | Phase | Single Phase |
|---|---|---|---|
| Input Voltage | 100-240VAC | Product Name | Online UPS Systems |
| Battery Type | Lead Acid Battery | Wave Form | Pure Sine Wave |
| Transfer Time | 0ms | Display | LCD+LED |
| High Light | 30KVA UPS Uninterruptible Power Supply,24KW UPS Uninterruptible Power Supply |
||
Product Description
LIRUISI Tower Power Machine UPS Uninterruptible Power Supply DP Series 30K
Product introduction:
This series of UPS is three-in, three-out UPS, UPS is three-in, three-out power frequency UPS, the product capacity covers each power segment between 10kVA and 30kVA, which is convenient for users to configure flexibly. This series of UPS can almost completely solve all power supply problems, such as power failure, mains high voltage, mains low voltage, voltage instantaneous drop, amplitude reduction oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter interference, frequency fluctuation and other power supplies.
way of working:
Three in three out, double conversion online working power frequency machine operation
Install UPS: When installing UPS, it should be placed in a well-ventilated, dry, dustproof place and grounded to ensure the safe use of the equipment.
| Power frequency three-in and three-out UPS system | ||
| Model | 30K | |
| rated capacity | P.F=0.8 | 30KVA/24KW |
| Technical parameters | ||
| input | voltage | 170~ 270V (phase voltage) |
| frequency | 50 Hz / 60 Hz ± 3 Hz | |
| Phase number | Single-phase or three-phase four-wire 380/220V | |
| battery | DC voltage | 240 Vdc |
| Standby time | Depends on battery capacity configuration | |
| Charging time | It can be recharged to 90% full potential 10 hours after full discharge | |
| protect | Low voltage automatic shutdown | |
| output | voltage | 1ψ2 W 220V ； 1ψ3 W 220V |
| frequency | 60 Hz/50 Hz | |
| voltage stability | ±1% | |
| efficiency | Complete-built unit | > 90 % |
| Inverter | > 92 % | |
| Indicator light | LED status | 1. Input power (bypass or main) normal (green light), 2. Inverter normal (green light) 3. Load powered by bypass (orange), 4. UPS abnormal (red), 5. Output overload (orange), 6. Battery low voltage (orange) |
| LCD status | Rated capacity, I/BYPASS voltage, I/BYPASS frequency, O/P voltage, O/P frequency, battery voltage, load, historical faults, customer service calls, working status, abnormal information, etc | |
| Communication port | RS232 bidirectional communication port | |
| Noise | 1 meter distance | < 55 dB |
| size | width | 470 |
| high | 980 | |
| deep | 785 | |
