Row Level Air Cooled Precision Cooling System Solutions Energy Saving
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | CRA3012 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Width series: half cabinet (300mm width); Full cabinet (600mm width) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Power Supply | 380V3PH~50HZ | Air Supply Method | Front Air Supply |
|---|---|---|---|
| Cooling Capacity (kW) | 12.5 | Apparent Cooling Capacity | 12.5 |
| High Light | Row Level Precision Cooling System,Air Cooled Precision Cooling System,Air Cooled Precision Cooling Solutions |
||
Product Description

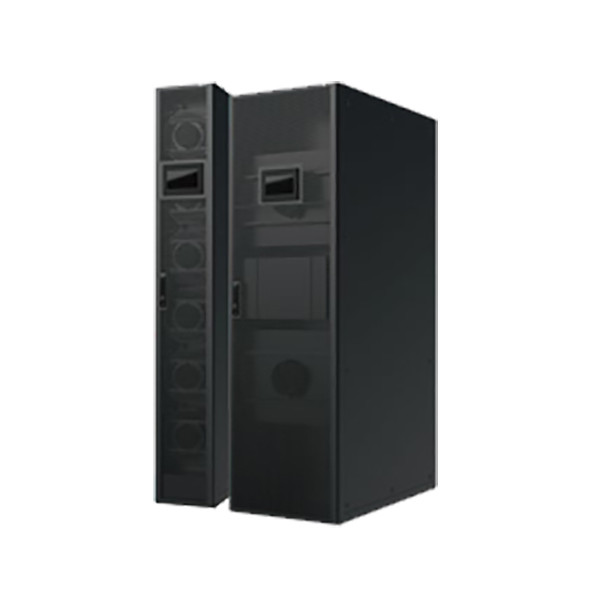

LIRUISI Row-Level Air-Cooled Machine Room Precision Air Conditioner CRA3012
Product introduction:
LRS-CRA series row-level air-cooled room air conditioner is a temperature control product specially designed for medium and high heat density data centers, which is installed close to the heat source, shortens the cold air flow path, and accurately processes the sensible heat generated by the server, which is an ideal choice for green energy-saving data centers and various electronic equipment rooms.Application scenarios: small and medium-sized data centers, modular data centers, cabinet cooling (hot) channel transformation, medium and high heat density communication equipment and computer rooms, etc.
The precision air conditioning system for row level air-cooled computer rooms is a type of air conditioning system designed specifically for high demand locations such as computer rooms, data centers, and server rooms.
It mainly has the following characteristics:
1 Efficient and energy-saving: Using environmentally friendly refrigerants, combined with advanced compressor and heat exchanger technology, significantly reduces energy consumption.
2. Precision control: The precision control system can accurately control temperature, humidity, and air flow rate, thereby ensuring the stability and stability of the internal environment of the computer room.
Product parameters:
| LIRUISI【CRA series row-level air-cooled room air conditioner】 | CRA series row-level air-cooled room air conditioning and refrigeration system [size and weight of internal unit] | ||
| Indoor unit model | CRA3012 | Unit width (mm) | 300 |
| Main power supply | 380V3PH~50HZ | Unit depth (mm) | 1200 |
| Air supply method | Front air supply | Unit height (mm) | 2000/2200 |
| CRA series row-level air-cooled computer room air conditioner [performance parameters] | Weight (kg) | 190 | |
| Cooling capacity (kW) | 12.5 | CRA series row-level air-cooled room air conditioning and refrigeration system [performance parameters of external unit] [40°C] | |
| apparent cooling capacity | 12.5 | Flat panel outdoor unit model | LRS-CST013SP |
| Maximum working current of the unit A | 27.5 | Compact outdoor unit model | N/A |
| Number of compressors | 1 | CRA series row-level air-cooled room air conditioning and refrigeration system [performance parameters of external unit] [45°C] | |
| Fan form | EC centrifugal fan | Flat panel outdoor unit model | N/A |
| Number of fans | 3 | Compact outdoor unit model | N/A |
| Circulating air volume (m3/h) | 3000 | Centralized outdoor unit model | N/A |
| Heating capacity (kw) | 2 | CRA series row-level air-cooled room air conditioning block refrigeration system [Recommended power distribution specifications] | |
| Humidification capacity (kg/h) | 1 | Recommended open | 40 |
| CRA series row-level air-cooled room air conditioning and refrigeration system【Connection pipe size specifications】 | Indoor unit power cord (mm2) | 4*6+1*6 | |
| Liquid tube (mm) | 9.25 | ||
| Trachea (mm) | 19.05 | ||
| Humidification inlet pipe (external thread) | G3/4 | ||
| Unit water pump drain pipe (mm) | ID9.53*OD17.02 | ||
| Unit natural drain pipe (mm) | ID16*OD24 | ||
