Server Room Precision Air Conditioner Units Row Level Air Cooled 3PH 380V CRA3025
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | CRA3025 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Width series: half cabinet (300mm width); Full cabinet (600mm width) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Indoor Unit Model | CRA3025 | Main Power Supply | 380V3PH~50HZ |
|---|---|---|---|
| Air Supply Method | Front Air Supply | Number Of Compressors | 1 |
| High Light | 3PH Precision Air Conditioner,380V Precision Air Conditioner,3PH Server Room Air Conditioning Units |
||
Product Description

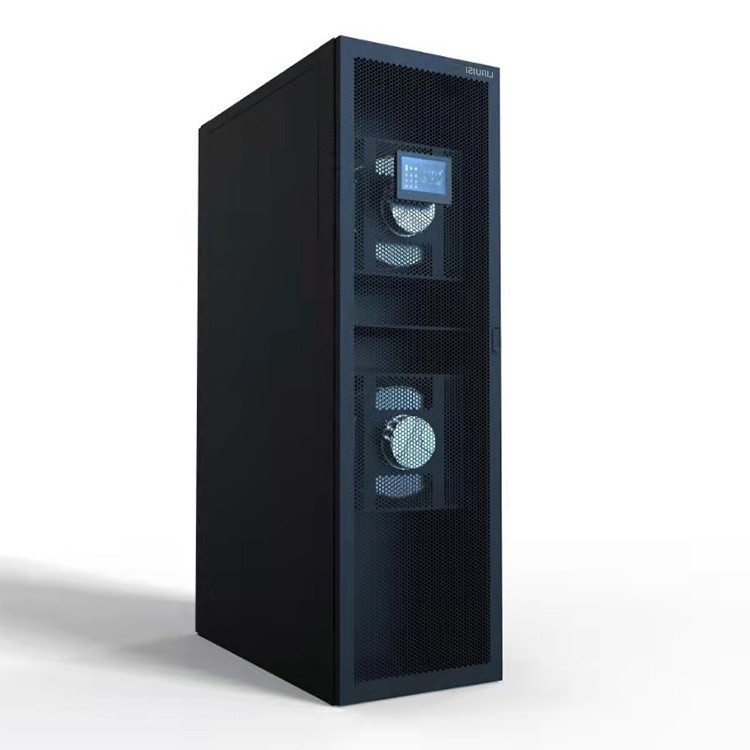

LIRUISI Row-Level Air-Cooled Machine Room Precision Air Conditioner CRA3025
Product introduction:
LRS-CRA series row-level air-cooled room air conditioner is a temperature control product specially designed for medium and high heat density data centers, which is installed close to the heat source, shortens the cold air flow path, and accurately processes the sensible heat generated by the server, which is an ideal choice for green energy-saving data centers and various electronic equipment rooms.Application scenarios: small and medium-sized data centers, modular data centers, cabinet cooling (hot) channel transformation, medium and high heat density communication equipment and computer rooms, etc.
Precision air conditioner products:
Maintenance and upkeep: Choosing a model that is easy to maintain and upkeep, such as an air conditioner configuration that is easy to replace filters and repair components, can reduce maintenance and upkeep costs and improve the service life of the air conditioner.
Product parameters:
| LIRUISI【CRA series row-level air-cooled room air conditioner】 | CRA series row-level air-cooled room air conditioning and refrigeration system [size and weight of internal unit] | ||
| Indoor unit model | CRA3025 | Unit width (mm) | 300 |
| Main power supply | 380V3PH~50HZ | Unit depth (mm) | 1100/1200 |
| Air supply method | Front air supply | Unit height (mm) | 2000/2200 |
| CRA series row-level air-cooled computer room air conditioner [performance parameters] | Weight (kg) | 210 | |
| Cooling capacity (kW) | 25 | CRA series row-level air-cooled room air conditioning and refrigeration system [performance parameters of external unit] [40°C] | |
| apparent cooling capacity | 25 | Flat panel outdoor unit model | LRS-CMT038SP |
| Maximum working current of the unit A | 37 | Compact outdoor unit model | LRS-CMT038SF |
| Number of compressors | 1 | CRA series row-level air-cooled room air conditioning and refrigeration system [performance parameters of external unit] [45°C] | |
| Fan form | EC centrifugal fan | Flat panel outdoor unit model | LRS-CMT044SP |
| Number of fans | 6 | Compact outdoor unit model | LRS-CMT044SF |
| Circulating air volume (m3/h) | 5000 | Centralized outdoor unit model | LRS-CMT050SF |
| Heating capacity (kw) | 3 | CRA series row-level air-cooled room air conditioning block refrigeration system [Recommended power distribution specifications] | |
| Humidification capacity (kg/h) | 1.5 | Recommended open | 40 |
| CRA series row-level air-cooled room air conditioning and refrigeration system【Connection pipe size specifications】 | Indoor unit power cord (mm2) | 4*6+1*6 | |
| Liquid tube (mm) | 15.88 | ||
| Trachea (mm) | 22 | ||
| Humidification inlet pipe (external thread) | G3/4 | ||
| Unit water pump drain pipe (mm) | ID9.53*OD17.02 | ||
| Unit natural drain pipe (mm) | ID16*OD24 | ||
