Small Precision Air Conditioner AC Fixed Frequency 380V 50Hz For Data Center
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | CSA1017 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Number of fans: 1 |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service Provided | Field Maintenance And Repair Service | Application | Computer Room |
|---|---|---|---|
| Color | Black/Grey White/other Custom Colors | Fan Type | Direct Driven Or Belt Driven |
| Power | 3N-380V-50Hz | Airflow | 2000~50000 M3/h |
| High Light | Precision Air Conditioner Fixed Frequency,50Hz Precision Air Conditioner,380V Precision AC For Data Center |
||
Product Description

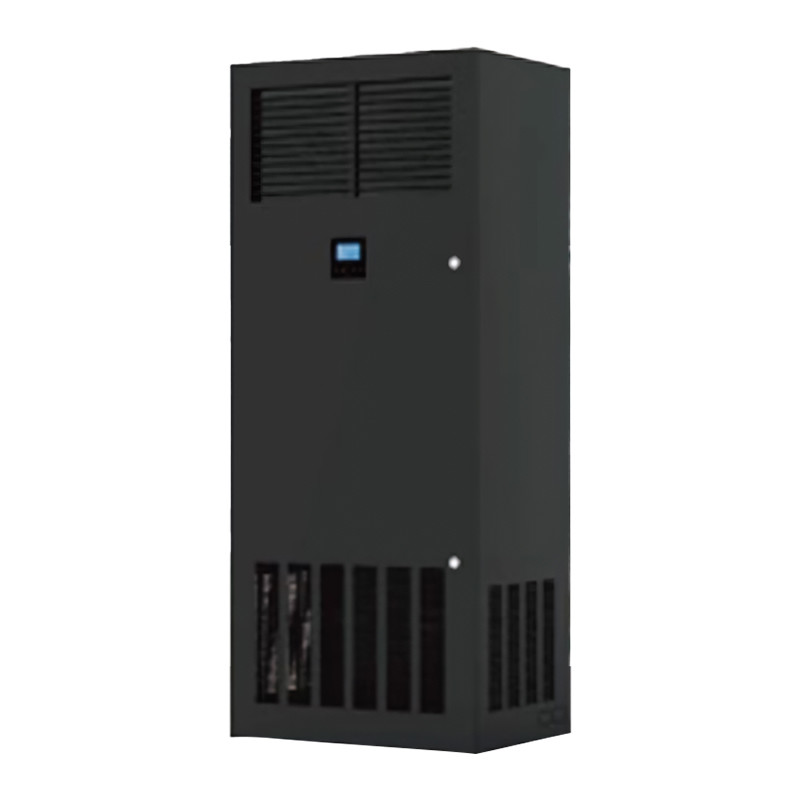

LIRUISI Small Fixed Frequency Precision Air Conditioner CSA Series 1017
Product introduction:
LRS-CSA series small computer room temperature control fixed frequency air conditioning system, using advanced design concept, equipped with high-efficiency EC centrifugal fan, the unit has passed the testing of relevant national institutions, with long-term energy saving, stable operation of the significant characteristics. Application scenarios: small and medium-sized computer rooms, equipment rooms, high-end communication base stations, various equipment rooms, battery rooms, power rooms, substations, distribution rooms, monitoring rooms, etc.
Product Features:
◎ First-line brand compressor, smooth rotation and smooth operation
◎ EC fan backward tilting design, air supply distance up to 15m
◎ The whole machine has passed more than 20 trademark indicators
◎ Electrode humidification + ceramic PTC heating
◎ Power-down memory, incoming call self-start
◎ Optional low-temperature components can achieve reliable operation at -35°C
Product parameters:
| LIRUISI【CSA series small computer room temperature control fixed frequency air conditioning system】 | CSA series small computer room temperature control fixed frequency air conditioning system [internal unit size and weight] | ||
| Indoor unit model | CSA1017 | Unit width (mm) | 750 |
| Main power supply | 380V3PH~50HZ | Unit depth (mm) | 550 |
| Air supply method | Come forward to supply air | Unit height (mm) | 1800 |
| CSA series small computer room temperature control fixed frequency air conditioning system【Performance parameters】 | Weight (kg) | 160 | |
| Cooling capacity (kW) | 17.5 | CSA series small computer room temperature control fixed frequency air conditioning system [external unit size] | |
| apparent cooling capacity | 15.75 | External model | LRS-CST017SP1A |
| Maximum working current of the unit A | 20 | Unit width (mm) | 1020 |
| Number of compressors | 1 | Unit depth (mm) | 405 |
| Fan form | EC centrifugal fan | Unit height (mm) | 1370 |
| Number of fans | 1 | Weight (kg) | 72 |
| Circulating air volume (m3/h) | 5200 | CSA series small computer room temperature control fixed frequency air conditioning system [Recommended power distribution specifications] | |
| Heating capacity (kw) | 3 | Recommended open | 25 |
| Humidification capacity (kg/h) | 1~3 | Indoor unit power cord (mm2) | 4*4.0+1*4.0 |
| CSA series small computer room temperature control fixed frequency air conditioning system [connection pipe size specification is 20m as an example] | Outdoor unit power cord (mm2) | 2*1.0+1*1.0 | |
| Liquid tube (mm) | 9.52 | ||
| Trachea (mm) | 19.05 | ||
| Humidification inlet pipe (internal thread) | G"1/2" | ||
| Unit drain pipe (mm) | Inner diameter 19mm, outer diameter 25mm, metal throat hoop connection | ||
