Dedicated Micro Datacenters System Micromodule Single Row VMDC-20-RRS
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | VMDC-20-RRS |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Cabinet size specification: 1400 * 3600 * 2000 |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Cabinets | 5 | Number Of IT Cabinets | 4 |
|---|---|---|---|
| Power Density -kW/Cabinet | 4 | Air Conditioning Type | Row Level |
| High Light | Dedicated Micro Datacenters,Single Row Micro Datacenters,Micromodule Datacenter System |
||
Product Description

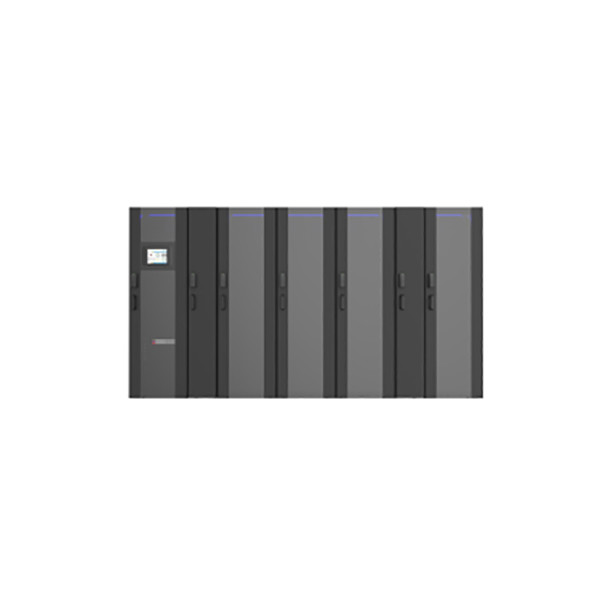

LIRUISI Dedicated Micromodule Single-Row System Black VMDC-20-RRS
Product Introduction:
Modular data center with a single channel refers to a data center that adopts a modular design approach, with all equipment connected to the same channel. The modular data center is prefabricated according to specific specifications, and each module can be used independently or combined as needed. The single channel means that all equipment in the data center is connected to the same channel, making it convenient for equipment management and maintenance while reducing the data center's footprint. Modular data centers with a single channel can rapidly respond to enterprise needs, enhance the data center's flexibility, security, and operational efficiency, and are thus increasingly adopted by businesses.
VMDC-20-RRS Cabinet:
1*integrated cabinet + 4*IT cabinet;
UPS: 20+20 (kVA) rack mount;
Refrigeration: 17.6+17.6kW row level air conditioner;
Redundancy: N+1
Product Features:
2m standard cabinet with larger 42U capacity;Support 1 tow (1-8) cabinet consolidation;There is no need to add additional air duct components, and the cabinets are directly decoupled and assembled to form a "hot and cold dual-channel double-closed" system
Product parameters:
| Model | VMDC-20-RRS |
| Number of cabinets | 5 |
| Number of IT cabinets | 4 |
| Power Density -kW/Cabinet | 4 |
| Redundancy type | N+1 |
| DEPTH X LENGTH X HEIGHT - MM: 1400X3600X2000 | |
| system | |
| UPS capacity -kVA | 20+20 |
| UPS class management | rack |
| Battery configuration (1 hour) | 12V/65Ah 16Pcs |
| PDU | 32A basic type 40 ports |
| Total Input Power Specifications | 80A/3P/380V/50Hz/60Hz |
| Refrigeration system | |
| Refrigeration type | air cooling |
| Air conditioning configuration - kW | 17.6+17.6 |
| Air conditioning type | row level |
| Emergency ventilation | Auto pop |
| Monitoring function | Touch screen, temperature and humidity, UPS management, air conditioning management, smoke sense, water leakage, door opening status |
