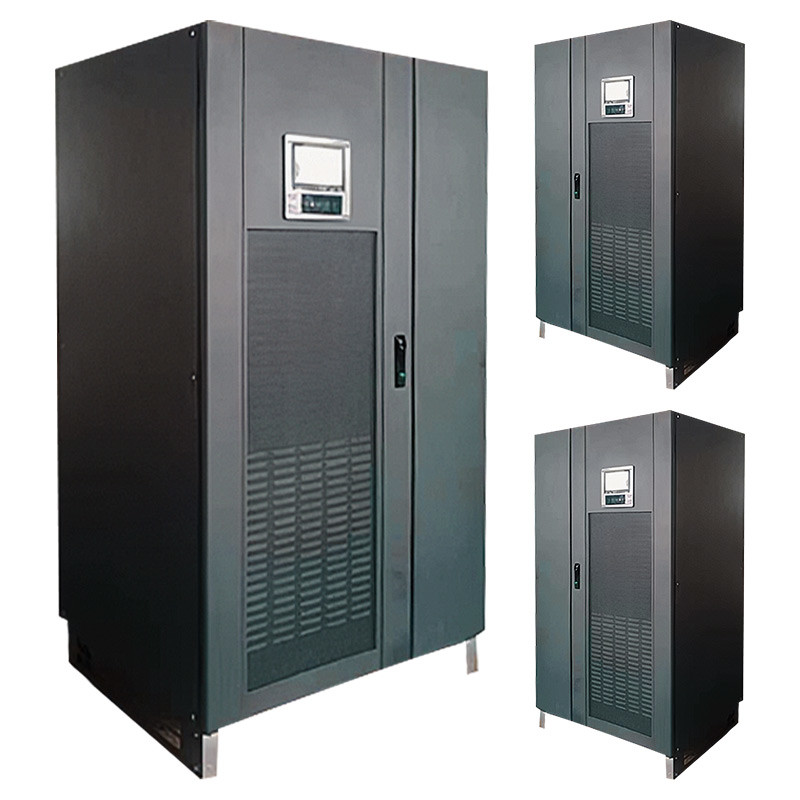

40KVA Computer UPS Backup System Power Supply Equipment Room Frequency Machine
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HP40KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard Accessories |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 110V/120V/220V/230V | Type | Line Interactive,12v Battery Charger Power Supply UPS Function 13.8v 55w |
|---|---|---|---|
| Application | Computer | Phase | Single/Three Phase |
| Input Voltage | 50-60Hz | Product Name | Mini UPS POE Router Simple Power Supply DC 9V 12V 15V 24V |
| High Light | 40KVA UPS Backup System,Computer UPS Backup System |
||
Product Description
LIRUISI Equipment Room Dedicated Frequency Machine Power Supply Black HP40KVA
Product Introduction:
HP series UPS has high reliability, high anti-interference, high fault tolerance function, can protect against lightning strikes, high surge, strong overload capacity and other characteristics, rated capacity from 10 ~ 400KVA, this series of products can be both parallel, hot backup can also be used standalone, suitable for banks, securities and other institutions of data centers, communications, transportation power, industrial automation and other industries.
How it works:
Three-in, three-out, double-conversion online working power frequency machine operation.
Product Features:
Dual conversion, pure online sine wave output, whether in mains mode or battery mode, can output a pure sine wave power supply with low distortion, providing the best power guarantee for the user's load equipment.
Product parameters:
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] | |
| Model | HP40KVA |
| Nominal capacity (KW) | 32 |
| Single-phase input maximum current (A) | 76 |
| Working method and principle | In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated |
| Input power factor | 0.8/0.9 (12 pulses)/0.95 (with active filter) |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50HZ±10%,60HZ±10% |
| voltage harmonic distortion | <5% |
| soft start | 0~100% 5 sec |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery | |
| Maximum discharge current (A) | 113 |
| Number of batteries per group | 12V type 32 sections or 2V type 192 sections |
| Nominal battery voltage | 384VDC(348V-384V );160~400KVA:384/396VDC |
| float voltage | 432VDC |
| charging current | 6~ 30A (adjustable) |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass | |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50HZ±5%；60HZ±5% |
| Transition time | 0ms |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system | |
| Communication interface | RS232, RS485, Dry Contacts, Smart Slots |
| Operating temperature | 0~40℃ |
| Relative humidity (non-condensing) | 0%~90% |
| Operating height (max) | < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters) |
| Cooling method | forced ventilation |
| Protection class | IP20 |
| Box color | White or black |
| Easy to maintain | Front/top/side |
