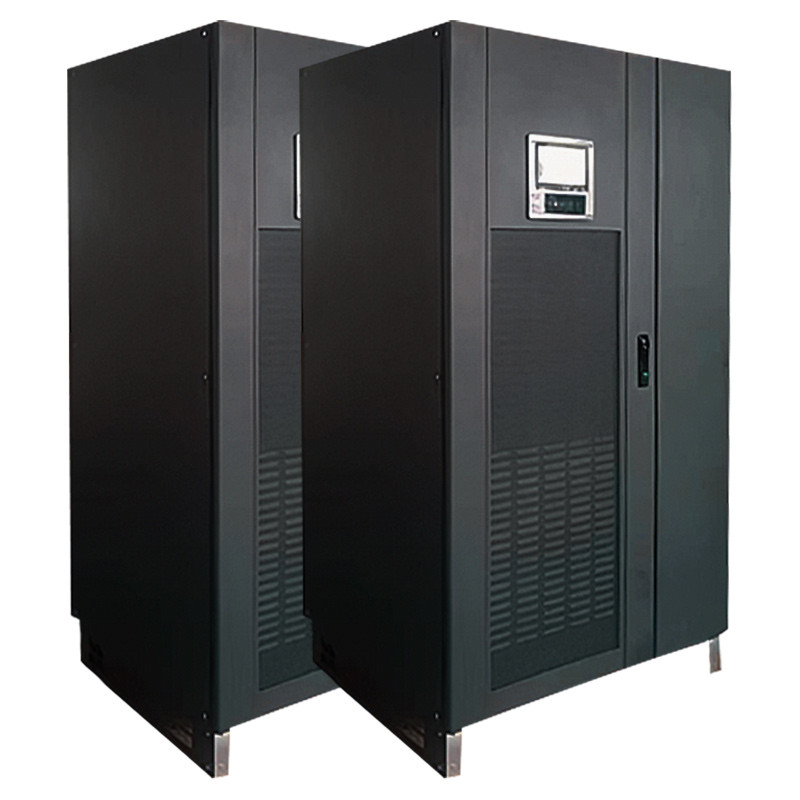

Computer Room UPS Uninterruptible Power Supply 80KVA For Security Monitoring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 400V/230 | Type | Line Interactive,12v Battery Charger Power Supply UPS Function 13.8v 55w |
|---|---|---|---|
| Application | Security / Monitoring / Alarm | Protection | Lightning |
| Color | Sliver Battery Backup Power Supply 12v | ||
| High Light | Computer Room UPS Uninterruptible Power Supply,80KVA UPS Uninterruptible Power Supply,80KVA Computer Room UPS |
||
Product Description
LIRUISI Computer Room UPS Uninterruptible Power Supply HP Series HP80KVA
Application of ups power supply:
1. Computers and Servers: UPS protects computers and servers from damage or data loss from power outages, voltage fluctuations, and power failures.
2. Networked devices: UPS can also be used to protect networked devices such as network routers, switches, and modems to ensure that the network remains stable from data loss or network interruption.
3. Medical equipment: UPS can ensure the stable operation of medical equipment, especially in operating rooms, ICU and other critical places are more common.
How it works:
Three-in, three-out, double-conversion online working power frequency machine operation.
Product Features:
Automatic frequency/phase synchronization to avoid the effect of input frequency hopping on the device.
Product parameters:
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] | |
| Model | HP80KVA |
| Nominal capacity (KW) | 64 |
| Single-phase input maximum current (A) | 152 |
| Working method and principle | In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated |
| Input power factor | 0.8/0.9 (12 pulses)/0.95 (with active filter) |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50HZ±10%,60HZ±10% |
| voltage harmonic distortion | <5% |
| soft start | 0~100% 5 sec |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery | |
| Maximum discharge current (A) | 225 |
| Number of batteries per group | 12V type 32 sections or 2V type 192 sections |
| Nominal battery voltage | 384VDC(348V-384V );160~400KVA:384/396VDC |
| float voltage | 432VDC |
| charging current | 6~ 30A (adjustable) |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass | |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50HZ±5%；60HZ±5% |
| Transition time | 0ms |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system | |
| Communication interface | RS232, RS485, Dry Contacts, Smart Slots |
| Operating temperature | 0~40℃ |
| Relative humidity (non-condensing) | 0%~90% |
| Operating height (max) | < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters) |
| Cooling method | forced ventilation |
| Protection class | IP20 |
| Box color | White or black |
| Easy to maintain | Front/top/side |
