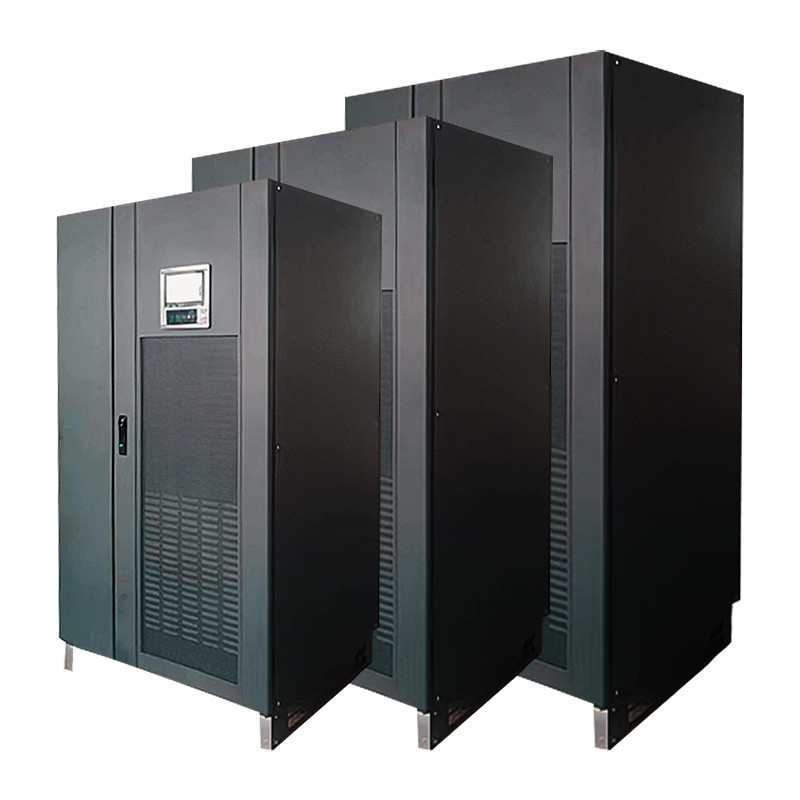

UPS Uninterrupted Power Supply Unit 100KVA For Power Frequency Computer Room
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HP100KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard Accessories |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wave Form | Analog Sine Wave | Capacity | 1KVA-30KVA |
|---|---|---|---|
| Transfer Time | 0 Ms | Warranty | 12 Months |
| Display | LCD+LED | Output Power | Max 600W |
| High Light | UPS Uninterrupted Power Supply Unit,100KVA Uninterrupted Power Supply Unit,100KVA UPS For Computer Room |
||
Product Description
LIRUISI power supply HP series 100KVA for power frequency computer room
Product Introduction:
HP series UPS has high reliability, high anti-interference, high fault tolerance function, can protect against lightning strikes, high surge, strong overload capacity and other characteristics, rated capacity from 10 ~ 400KVA, this series of products can be both parallel, hot backup can also be used standalone, suitable for banks, securities and other institutions of data centers, communications, transportation power, industrial automation and other industries.
How it works:
Three-in, three-out, double-conversion online working power frequency machine operation.
Product Features:
Perfect protection function, with AC input overvoltage, undervoltage protection, output overvoltage and undervoltage protection, output overload short circuit protection, battery undervoltage early warning protection, in-machine overtemperature protection, thus greatly ensuring the stability and reliability of system operation.
Product parameters:
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] | |
| Model | HP100KVA |
| Nominal capacity (KW) | 80 |
| Single-phase input maximum current (A) | 190 |
| Working method and principle | In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated |
| Input power factor | 0.8/0.9 (12 pulses)/0.95 (with active filter) |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50HZ±10%,60HZ±10% |
| voltage harmonic distortion | <5% |
| soft start | 0~100% 5 sec |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery | |
| Maximum discharge current (A) | 282 |
| Number of batteries per group | 12V type 32 sections or 2V type 192 sections |
| Nominal battery voltage | 384VDC(348V-384V );160~400KVA:384/396VDC |
| float voltage | 432VDC |
| charging current | 6~ 30A (adjustable) |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass | |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50HZ±5%；60HZ±5% |
| Transition time | 0ms |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system | |
| Communication interface | RS232, RS485, Dry Contacts, Smart Slots |
| Operating temperature | 0~40℃ |
| Relative humidity (non-condensing) | 0%~90% |
| Operating height (max) | < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters) |
| Cooling method | forced ventilation |
| Protection class | IP20 |
| Box color | White or black |
| Easy to maintain | Front/top/side |
