Unit Hp 60kva 3 Phase Battery Backup Power Supply Online
| Place of Origin | China |
|---|---|
| Brand Name | LIRUISI |
| Model Number | HP60KVA |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | Standard Accessories |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 9999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 110V/120V/220V/230V | Type | Line Interactive,12v Battery Charger Power Supply UPS Function 13.8v 55w |
|---|---|---|---|
| Application | Computer | Phase | Single/Three Phase |
| Input Voltage | 50-60Hz | Product Name | Mini UPS POE Router Simple Power Supply DC 9V 12V 15V 24V |
| Battery Capacity | 12V/7Ah | Display | LED/LCD |
| High Voltage Protection | Yes | Input Voltage | 220V |
| Low Voltage Protection | Yes | Output Frequency | 50Hz/60Hz |
| Output Power | 1000W | Output Voltage | 220V |
| Output Waveform | Pure Sine Wave | Over Temperature Protection | Yes |
| Overload Protection | Yes | Short Circuit Protection | Yes |
| Size | 200*150*90mm | Warranty | 1 Year |
| High Light | 60kva battery backup power supply,3 phase battery backup power supply |
||
Product Description

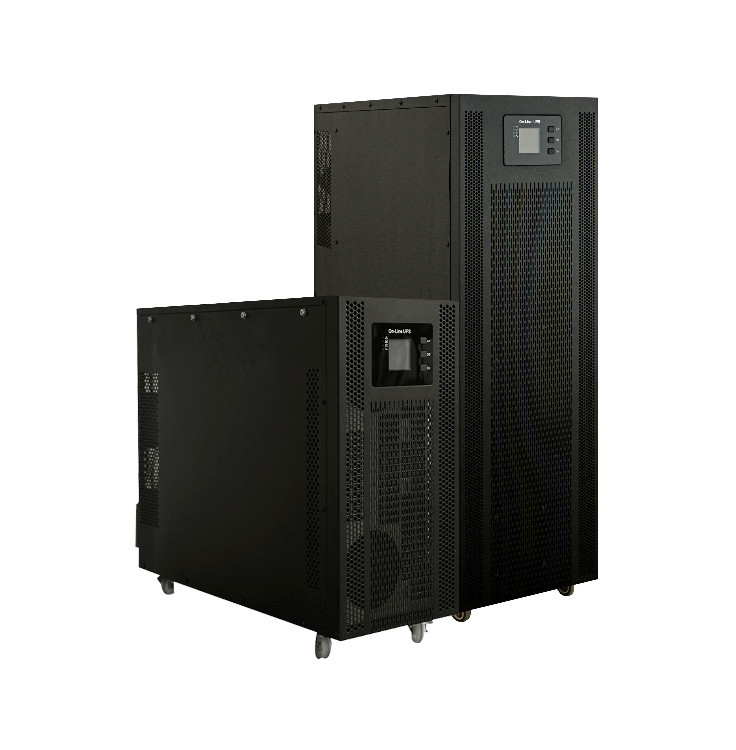

LIRUISI Uninterrupted Power Supply Unit HP 60KVA 3 Phase Online UPS
Product Introduction:
An uninterruptible power supply (UPS) is a device used to protect electronic equipment from power failures such as power failures, voltage runouts, transient power failures, etc. It supplies electronic devices by converting DC power (such as batteries) into AC power to provide power supply in the event of a power outage or power failure to guarantee the normal operation of equipment and continuous operation of data. The UPS can power the device in seconds to tens of minutes to back up files, save data, or shut down. In some occasions where long-term continuous power supply is required, such as UPS can also be used with generators to ensure the stable power supply of equipment.
Product Features:
The output has an isolation transformer to ensure that the load and the utility grid are fully isolated.
Product parameters:
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] | |
| Model | HP60KVA |
| Nominal capacity (KW) | 48 |
| Single-phase input maximum current (A) | 114 |
| Working method and principle | In-line power supply, static bypass switch (non-stop switching), double conversion technology, the output power supply is completely isolated |
| Input power factor | 0.8/0.9 (12 pulses)/0.95 (with active filter) |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50HZ±10%,60HZ±10% |
| voltage harmonic distortion | <5% |
| soft start | 0~100% 5 sec |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] battery | |
| Maximum discharge current (A) | 169 |
| Number of batteries per group | 12V type 32 sections or 2V type 192 sections |
| Nominal battery voltage | 384VDC(348V-384V);160~400KVA:384/396VDC |
| float voltage | 432VDC |
| charging current | 6~ 30A (adjustable) |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] bypass | |
| Phase number | Three-phase + N + G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50HZ±5%；60HZ±5% |
| Transition time | 0ms |
| HP10KVA-HP400KVA [Power frequency tower three-in, three-out UPS system] overall system | |
| Communication interface | RS232, RS485, Dry Contacts, Smart Slots |
| Operating temperature | 0~40℃ |
| Relative humidity (non-condensing) | 0%~90% |
| Operating height (max) | < 1000 meters (1% decrease in power for each additional 100 meters, up to 4000 meters) |
| Cooling method | forced ventilation |
| Protection class | IP20 |
| Box color | White or black |
| Easy to maintain | Front/top/side |
