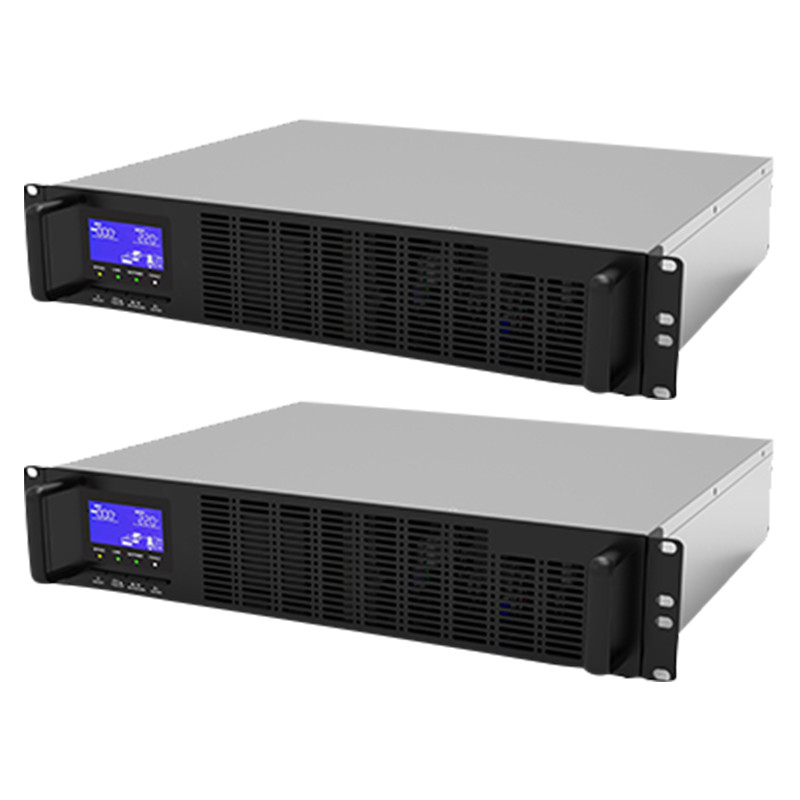

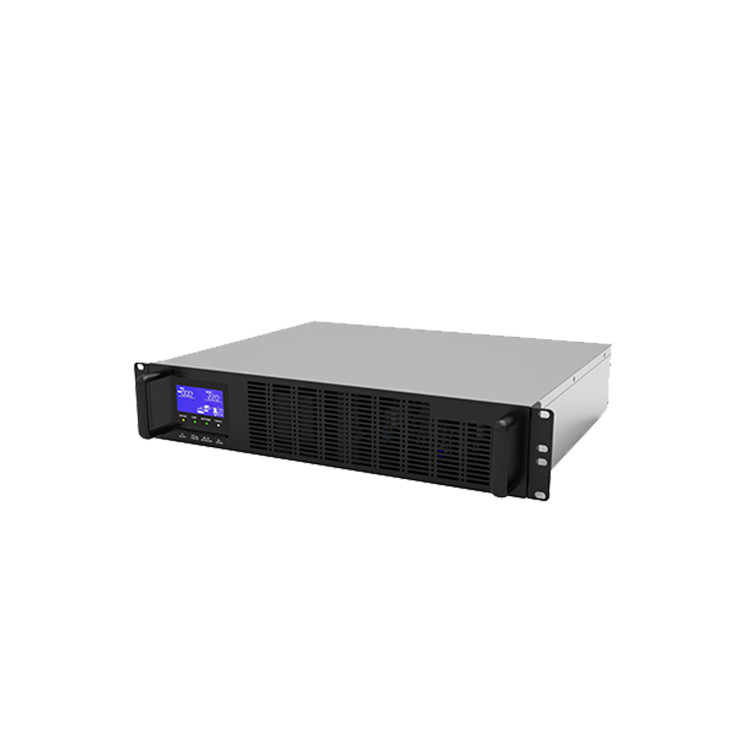

Uninterruptible UPS Power Supply Rack High Frequency 800W E1KRVA UPS System
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | E1KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | Rackmount size: 3K(R): 438mm(W) x 88mm(2U)(H) x 480mm(D) Built-in battery included |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Specifications | 1KVA/800W | Type | 12v Battery Charger Power Supply UPS Function 13.8v 55w |
|---|---|---|---|
| Application | Security / Monitoring / Alarm | Protection | Overvoltage |
| Output Voltage Accuracy | ±1% | Color | Black |
| High Light | Uninterruptible UPS Power Supply Rack,800W UPS Power Supply Rack,High Frequency 1KVA UPS System |
||
Product Description
Liruisi High Frequency Machine UPS Uninterruptible Power Supply R Series E1RS
Product introduction:
Liruis E1RS [three-in, single-out] standard rack-mounted battery pack UPS system is a high-end low-power online UPS product specially proposed for the needs of small power supply environment of enterprises and institutions, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.
How it works:
Three-in single-out, double-conversion online work order in single-out operation
Communication equipment: UPS can ensure that communication equipment maintains communication connection in the event of a power failure and avoids data loss.
Technical parameters:
| Single Input Single Output High Frequency Rack UPS System | |
| Product model | Single-phase electrical input, single-phase electrical output |
| E1KRVA | |
| Specifications | 1KVA/800W |
| Performance parameters | |
| Input voltage range | Zero fire phase voltage: 90~ 300VAC |
| Input power factor | ≥0.99 |
| Input frequency range | 40Hz-70Hz |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Output distortion(THDV%) | < 2% (linear load), < 7% (nonlinear load) |
| Overload capacity | 1min@105%~125% rated load, 10s@125%~150% rated load, 0.5S@>150% rated load |
| Number of batteries | 6*12/7AH |
| Battery DC voltage | 36VDC |
| Rack Battery Case Size | 2U:438*88*360 |
| Rack UPS Host Size | 2U rack type: 438 * 88 * 360mm |
