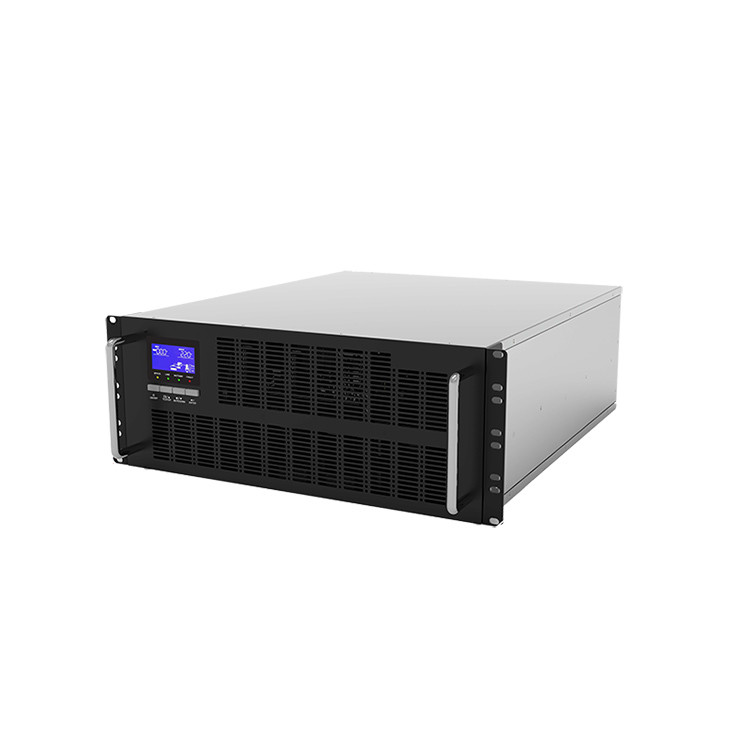

Modular Rack UPS Power Supply 18KW 20 KVA High Frequency 3E20KRVA
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | 3E20KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | 3E10KS Tower: 190 (W) x340 (H) x528 (D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 12v Battery Charger Power Supply UPS Function 13.8v 55w | Application | Security / Monitoring / Alarm |
|---|---|---|---|
| Wave Form | Pure Sine Wave | Capacity | 1KVA-30KVA |
| Input Frequency Range | 40Hz-70Hz | Battery DC Voltage | 192/240VDC |
| High Light | 18KW Rack UPS Power Supply,20 KVA Rack UPS Power Supply,High Frequency 20 KVA Modular UPS |
||
Product Description
Liruisi High Frequency Machine UPS Uninterruptible Power Supply R Series 3E20RKVA
Product introduction:
Liruis 3E20KVA [three in and single out] standard rack battery pack UPS system is a high-end low-power online UPS product specially proposed for the needs of enterprises and institutions for small power supply environment, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.
How it works:
Three-in single-out, double-conversion online work order in single-out operation
Industrial equipment and automation systems: UPS can provide power backup services for automated production lines, robots and other industrial equipment to ensure the normal operation of industrial equipment. In short, any device that requires a continuous and stable power supply can use a UPS.
Technical parameters:
| Three-in single-out high-frequency rack-mounted UPS system | |
| Product model | Single-phase electrical input, single-phase electrical output |
| 3E20KRVA | |
| Specifications | 20KVA/18KW |
| Performance parameters | |
| Input voltage range |
Single-phase zero fire phase voltage: 90~300VAC Three-phase line voltage: 150~500VAC |
| Input power factor | ≥0.99 |
| Input frequency range | 40Hz-70Hz |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Output distortion(THDV%) | < 2% (linear load), < 6% (nonlinear load) |
| Overload capacity | Mains mode, battery mode (240VDC), 10 minutes @ 105% ~ 125% rated load, 30 seconds @ 126% ~ 150% rated load, 0.5 seconds @ > 150% rated load. |
| Number of batteries | 192/240VDC, 16/20 Section |
| Battery DC voltage | 192/240VDC |
| charging current | Long-lasting machine (external battery): 4A |
| LCD display, communication interface | Display input and output voltage voltage, frequency, load percentage, working mode, machine status, standard RS232, Ethernet network interface card |
