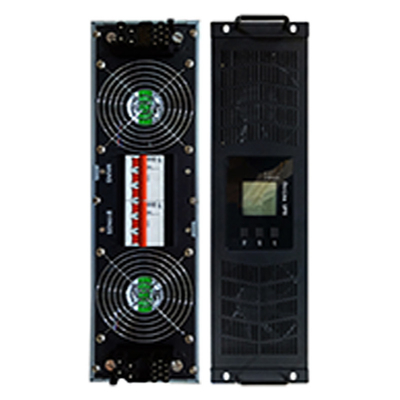

Rack Type UPS Backup Power Supply Modular 27KW 30KVA UPS System High Frequency
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | 30KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | Size: 438 × 500 × 130 mm |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Protection | Overvoltage |
|---|---|---|---|
| Product Name | Online UPS Systems | Battery Type | Lead Acid Battery |
| Specifications | 30KVA/27KW | Input Power Factor | ≥0.99 |
| High Light | 27KW UPS Backup Power Supply,30KVA UPS Backup Power Supply,Rack Type 30KVA UPS System |
||
Product Description
Liruisi Rack Type UPS Uninterruptible Power Supply HY Series 30KRS
Product introduction:
Liruis 33 series-high-frequency UPS power supply, equipped with dual DSP controller, rectification, inverter, charging, discharge all realize DSP digital control, power module independent current sharing control, no single point of failure risk, is a collection of today's power electronics cutting-edge technology in one of the high-end power products. The innovative design results in unmatched reliability and performance. The extremely high input power factor and very low input current distortion rate ensure the green and environmental protection of the product, and the extremely high efficiency of the whole machine ensures the energy saving of the product. This series of products can run 4 machines directly in parallel.
How it works:
Three in, three out, double conversion online work order in and out operation.
Short circuit protection: When the output is short-circuited, automatically cut off the power supply to protect the device from damage.
Technical parameters:
| Three in three out high frequency rack type UPS system | |
| Product model | Single-phase electrical input, single-phase electrical output |
| HY30KRVA | |
| Specifications | 30KVA/27KW |
| Performance parameters | |
| Input voltage range |
380/400/415Vac, three-phase four-wire + ground, 208~478Vac |
| Input power factor | ≥0.99 |
| Input frequency range | 45-55Hz at 50Hz/54-66Hz at 60Hz (adaptive) |
| Number of output lines | Three-phase four-wire + grounding (can be customized as single-phase + grounding) |
| Rated voltage | 380/400/415Vac |
| Output voltage accuracy | ±1% |
| Output frequency | synchronization with input; When the mains frequency exceeds the maximum ± by 10% (±1%, ±2%, ±4%, ±5%), the output frequency is 50× (±0.2) Hz |
| peak load ratio | 3:01:00 |
| Output distortion(THDV%) | ≤ 2% linear load, ≤ 5% nonlinear load |
| Overload capacity | Load ≤ 110%, 60min, ≤125%, maintain 10min, maintain 150% ≤ 1min, ≥150% shut down immediately |
| Battery voltage | Default ± 192V DC (32 cells), 32-40 battery count |
| Charging current | 10A max |
| Communication interface | USB, RS485, dry node, parallel (option), SNMP card (option), relay card (option) |
| Rack size | 580X443x131mm (3U height) |
| weight | 33.5 |
