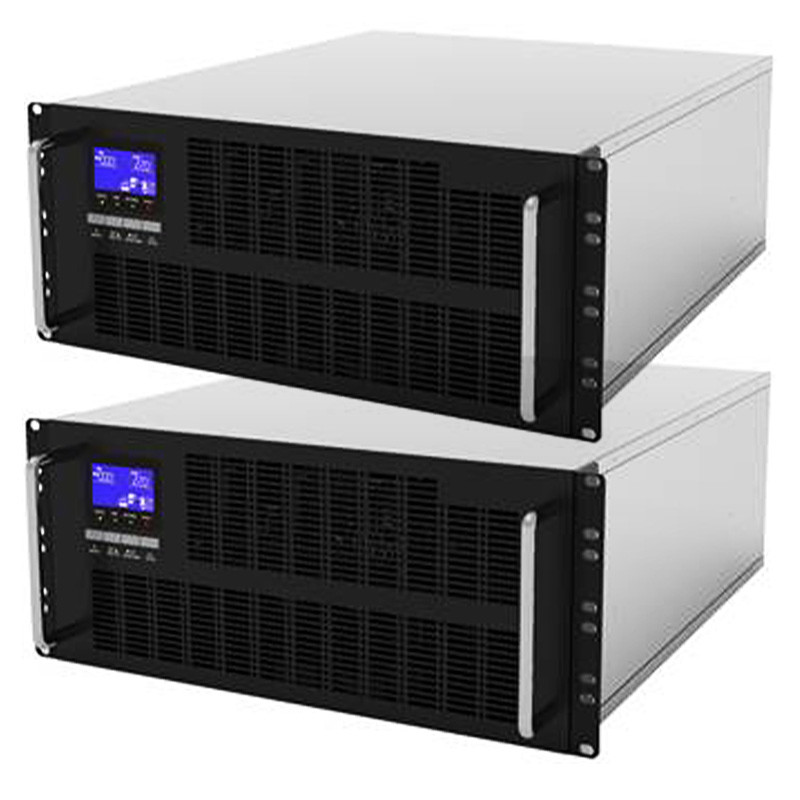

3E15RKVA Uninterruptible Rack UPS Power Supply High Frequency 15KVA 13.5KW
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | 3E15KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | 3E10KS Tower: 190 (W) x340 (H) x528 (D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 12v Battery Charger Power Supply UPS Function 13.8v 55w | Application | Security / Monitoring / Alarm |
|---|---|---|---|
| Wave Form | Pure Sine Wave | Output Waveform | Pure Sine Wave |
| Transfer TiNumber Of Batteries Me | 192/240VDC, 16/20 Section | Specifications | 15KVA/13.5KW |
| High Light | 13.5KW Rack UPS Power Supply,15KVA Rack UPS Power Supply,13.5KW Uninterruptible Power Supply UPS |
||
Product Description
Liruisi High Frequency Machine UPS Uninterruptible Power Supply R Series 3E15RKVA
UPS power supplies typically consist of three main components:
rectifier, battery and inverter. When the power supply is interrupted, the rectifier converts the direct current in the battery to alternating current to maintain the normal operation of the equipment. At the same time, the battery can store energy for later use and provide backup power to the device when needed.
How it works:
Three-in single-out, double-conversion online work order in single-out operation
Core advantages:
It is suitable for separate use in the cabinet or outside the cabinet.DSP digital control, the control system is more stable and reliable, excellent performance, Dual conversion online design using input power correction (PED) technology. Input power up to 0.99.Machine efficiency up to 96%The output power factor is 0.8/0.9/1 optional, with higher actual load capacity, saving user investment.
Technical parameters:
| Three-in single-out high-frequency rack-mounted UPS system | |
| Product model | Single-phase electrical input, single-phase electrical output |
| 3E15KRVA | |
| Specifications | 15KVA/13.5KW |
| Performance parameters | |
| Input voltage range |
Single-phase zero fire phase voltage: 90~300VAC Three-phase line voltage: 150~500VAC |
| Input power factor | ≥0.99 |
| Input frequency range | 40Hz-70Hz |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Output distortion(THDV%) | < 2% (linear load), < 6% (nonlinear load) |
| Overload capacity | Mains mode, battery mode (240VDC), 10 minutes @ 105% ~ 125% rated load, 30 seconds @ 126% ~ 150% rated load, 0.5 seconds @ > 150% rated load. |
| Number of batteries | 192/240VDC, 16/20 Section |
| Battery DC voltage | 192/240VDC |
| charging current | Long-lasting machine (external battery): 4A |
| LCD display, communication interface | Display input and output voltage voltage, frequency, load percentage, working mode, machine status, standard RS232, Ethernet network interface card |
