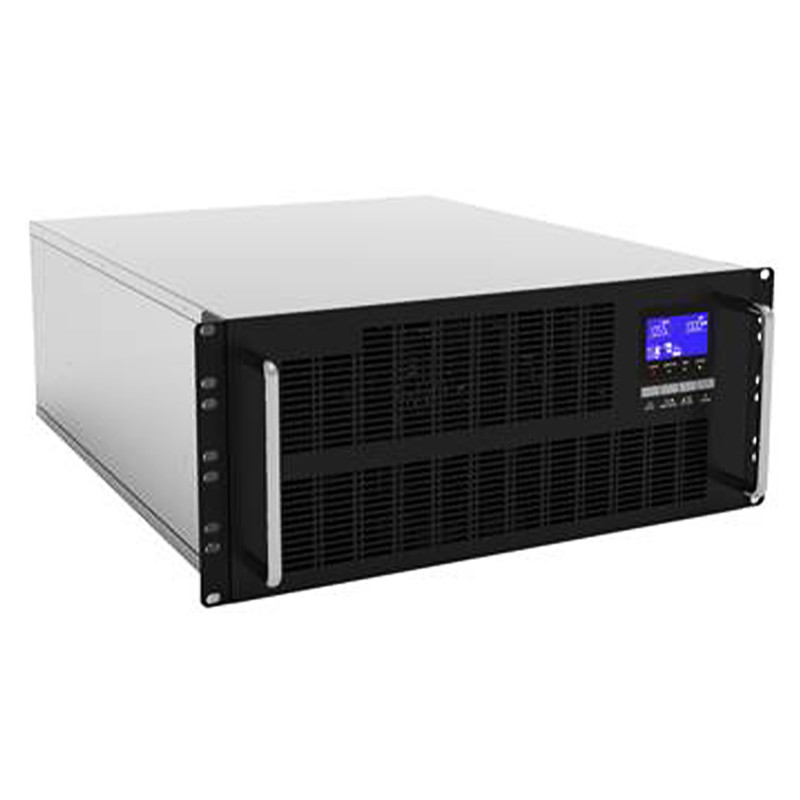

High Frequency Rack UPS Power Supply 9KW 10KVA Battery Backup
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | 3E10KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | 3E10KS Tower: 190 (W) x340 (H) x528 (D) |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 12v Battery Charger Power Supply UPS Function 13.8v 55w | Application | Security / Monitoring / Alarm |
|---|---|---|---|
| Input Frequency Range | 40Hz-70Hz | Wave Form | Pure Sine Wave |
| Battery DC Voltage | 192/240VDC | Output Waveform | Pure Sine Wave |
| High Light | 9KW Rack UPS Power Supply,High Frequency Rack UPS Power Supply,High Frequency 10KVA Battery Backup |
||
Product Description
Liruisi High Frequency Machine UPS Uninterruptible Power Supply R Series 3E10RKVA
Product introduction:
Any device that requires a continuous and stable power supply can use a UPS. UPS can provide short-term power backup for the equipment, so that the equipment can operate normally in the event of a sudden power failure, so as to ensure the normal operation of the equipment and data security.
How it works:
Three-in single-out, double-conversion online work order in single-out operation.
Core advantages:
It is suitable for separate use in the cabinet or outside the cabinet. DSP digital control, the control system is more stable and reliable, excellent performance,Dual conversion online design using input power correction (PED) technology. Input power up to 0.99.Machine efficiency up to 96%The output power factor is 0.8/0.9/1 optional, with higher actual load capacity, saving user investment.
UPS power supply is widely used in various occasions, such as computer servers, network communication equipment, medical equipment, industrial control equipment, etc. They can provide reliable power protection to ensure continuous operation of equipment and security of data.
Technical parameters:
| Three-in single-out high-frequency rack-mounted UPS system | |
| Product model | Single-phase electrical input, single-phase electrical output |
| 3E10KRVA | |
| Specifications | 10KVA/9KW |
| Performance parameters | |
| Input voltage range |
Single-phase zero fire phase voltage: 90~300VAC Three-phase line voltage: 150~500VAC |
| Input power factor | ≥0.99 |
| Input frequency range | 40Hz-70Hz |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Output distortion(THDV%) | < 2% (linear load), < 6% (nonlinear load) |
| Overload capacity | Mains mode, battery mode (240VDC), 10 minutes @ 105% ~ 125% rated load, 30 seconds @ 126% ~ 150% rated load, 0.5 seconds @ > 150% rated load. |
| Number of batteries | 192/240VDC, 16/20 Section |
| Battery DC voltage | 192/240VDC |
| charging current | Long-lasting machine (external battery): 4A |
| LCD display, communication interface | Display input and output voltage voltage, frequency, load percentage, working mode, machine status, standard RS232, Ethernet network interface card |
