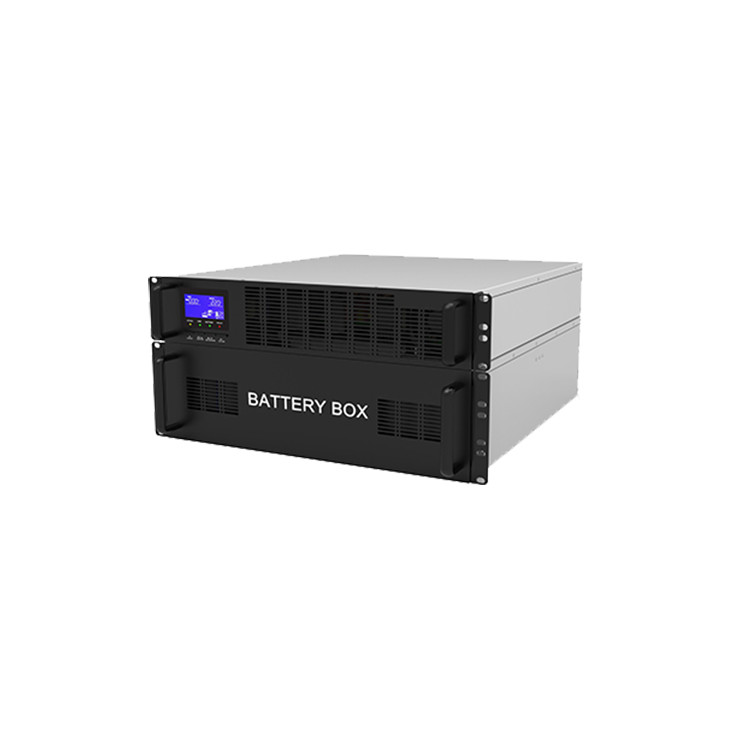

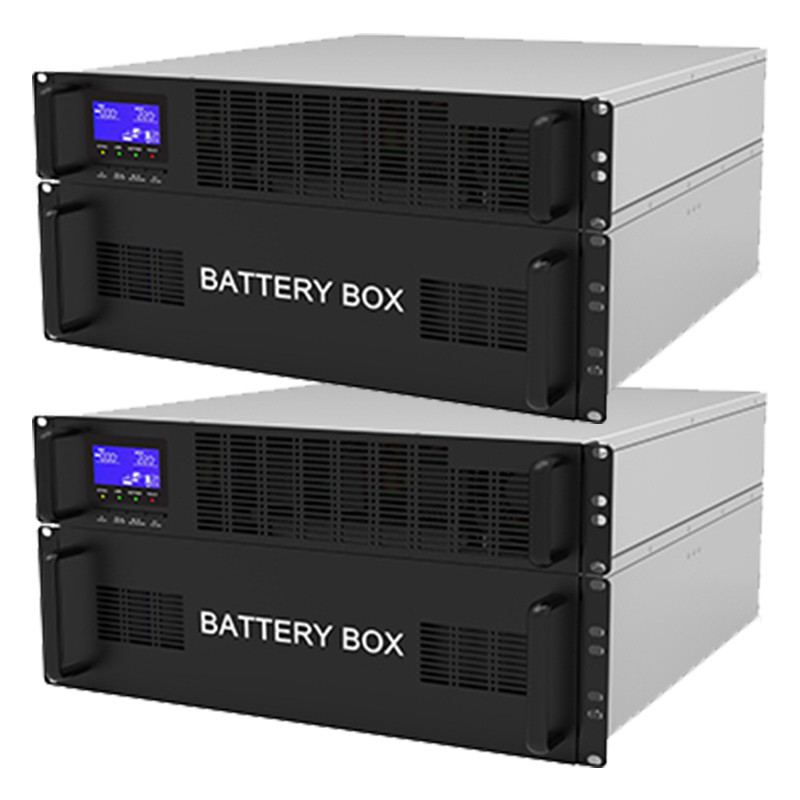

1600W 2KRVA Rack Mount UPS Single Phase High Frequency Machine Lead Acid Battery
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | 2KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | Rackmount size: 3K(R): 438mm(W) x 88mm(2U)(H) x 480mm(D) Built-in battery included |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Security / Monitoring / Alarm | Protection | Overvoltage |
|---|---|---|---|
| Phase | Single Phase | Input Power Factor | ≥0.99 |
| Battery Type | Lead Acid Battery | CapacitySpecifications | 2KVA/1600W |
| High Light | 1600W 2KVA Rack Mount UPS,Single Phase 2KVA Rack Mount UPS |
||
Product Description
Liruisi High Frequency Machine UPS Uninterruptible Power Supply R Series E2RS
Product introduction:
Liruis E2RS [three-in, single-out] standard rack-mounted battery pack UPS system is a high-end low-power online UPS product specially proposed for the needs of small power supply environment of enterprises and institutions, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.
How it works:
Three-in single-out, double-conversion online work order in single-out operation
UPS has a wide range of application scenarios, including: Computers and servers: UPS can provide computers and servers with short-term backup power to prevent the system from losing unsaved data or shutting down improperly in the event of a sudden power outage.
Technical parameters:
| Single Input Single Output High Frequency Rack UPS System | |
| Product model | Single-phase electrical input, single-phase electrical output |
| 2KRVA | |
| Specifications | 2KVA/1600W |
| Performance parameters | |
| Input voltage range | Zero fire phase voltage: 90~ 300VAC |
| Input power factor | ≥0.99 |
| Input frequency range | 40Hz-70Hz |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Output distortion(THDV%) | < 2% (linear load), < 7% (nonlinear load) |
| Overload capacity | 1min@105%~125% rated load, 10s@125%~150% rated load, 0.5S@>150% rated load |
| Number of batteries | 6*12/7AH |
| Battery DC voltage | 72VDC |
| Rack Battery Case Size | 2U:438*88*360 |
| Rack UPS Host Size | 2U rack type: 438 * 88 * 360mm |
