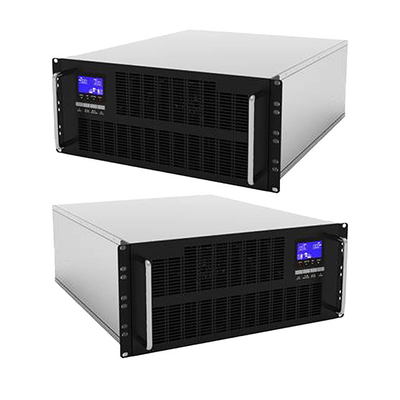

8000W 10KVA Single Phase UPS Power Supply Uninterruptible Overvoltage Protection
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | 10KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | Rackmount size: 3K(R): 438mm(W) x 88mm(2U)(H) x 480mm(D) Built-in battery included |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Type | On-line |
|---|---|---|---|
| Application | Security / Monitoring / Alarm | Protection | Overvoltage |
| Phase | Single Phase | Specifications | 10KVA/8000W |
| High Light | 8000W 10KVA Single Phase UPS,Single Phase 10KVA Single Phase UPS,8000W Power Supply Uninterruptible |
||
Product Description
Liruisi high frequency machine UPS uninterruptible power supply R series E10RS
The main features of this UPS product are:
High efficiency: This product adopts high-frequency technology and pure online converter, with high efficiency and low energy consumption characteristics, which can maximize energy waste reduction.
How it works:
Three-in single-out, double-conversion online work order in single-out operation
Core advantages:
It is suitable for separate use in the cabinet or outside the cabinet.DSP digital control, the control system is more stable and reliable, excellent performance,Dual conversion online design using input power correction (PED) technology. Input power up to 0.99.Machine efficiency up to 96%The output power factor is 0.8/0.9/1 optional, with higher actual load capacity, saving user investment.
Technical parameters:
| Single Input Single Output High Frequency Rack UPS System | |
| Product model | Single-phase electrical input, single-phase electrical output |
| 10KRVA | |
| Specifications | 10KVA/8000W |
| Performance parameters | |
| Input voltage range |
High voltage version HV: zero fire phase voltage: 90~300VAC Low voltage version LV: zero fire phase voltage: 55~145VAC |
| Input power factor | ≥0.99 |
| Input frequency range | 40Hz-70Hz |
| Number of output lines | Single-phase two-wire (L, N) + protected ground |
| Rated voltage | 208/220/230/240VAC |
| Output voltage accuracy | ±1% |
| Output frequency | 50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode) |
| Output waveform | Pure sine wave |
| Output distortion(THDV%) | < 2% (linear load), < 7% (nonlinear load) |
| Overload capacity | 10 minutes @ 105% ~ 125% rated load, 1 minute @ 125% ~ 150% rated load |
| Number of batteries | 16*12/9AH |
| Battery DC voltage | 192VDC |
| Rack Battery Case Size | 2U:438*132*550 |
| Rack UPS Host Size | 2U rack type: 438 * 88 * 360mm |
