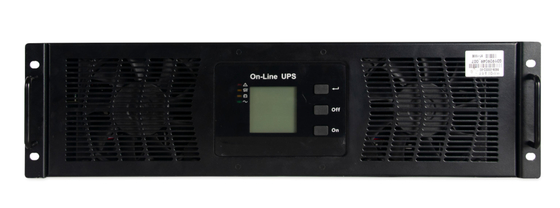

Overvoltage Protection Rack UPS Power Supply 10KVA 9KW Online UPS Systems
| Place of Origin | China |
|---|---|
| Brand Name | Liruisi |
| Model Number | HY10KRVA |
| Minimum Order Quantity | 1Section |
| Price | bargaining |
| Packaging Details | Size: 438 × 500 × 130 mm |
| Delivery Time | 8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 999 units |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Voltage | 220V 50Hz / 110V 60Hz | Protection | Overvoltage |
|---|---|---|---|
| Product Name | Online UPS Systems | Battery Type | Lead Acid Battery |
| Specifications | 10KVA/9KW | Peak Load Ratio | 3:01:00 |
| High Light | 10KVA Rack UPS Power Supply,Online Rack UPS Power Supply,9KW Online UPS Systems |
||
Product Description
How it works:
Three in, three out, double conversion online work order in and out operation.
Core advantages:
The rectifier adopts IGBT, with PFC function, input power factor up to 0.99, input harmonic current less than 3%, and the efficiency of the whole machine is ≥ 94.5%, which is green and environmentally friendly, high efficiency and energy saving.Fully digital dual DSP control5. Integrated independent main circuit input empty open, output empty open and maintenance bypass empty open, convenient for user wiring.Meet the following overload capacity: 110% load, 1 hour to bypass output, 125% load to bypass output after 10 minutes, 150% load to bypass output after 1 minute.
Self-test diagnostics: Ability to detect and report equipment faults or problems for timely resolution.
Technical parameters:
| Three in three out high frequency rack type UPS system | |
| Product model | Single-phase electrical input, single-phase electrical output |
| HY10KRVA | |
| Specifications | 10KVA/9KW |
| Performance parameters | |
| Input voltage range |
380/400/415Vac, three-phase four-wire + ground, 208~478Vac |
| Input power factor | ≥0.99 |
| Input frequency range | 45-55Hz at 50Hz/54-66Hz at 60Hz (adaptive) |
| Number of output lines | Three-phase four-wire + grounding (can be customized as single-phase + grounding) |
| Rated voltage | 380/400/415Vac |
| Output voltage accuracy | ±1% |
| Output frequency | synchronization with input; When the mains frequency exceeds the maximum ± by 10% (±1%, ±2%, ±4%, ±5%), the output frequency is 50× (±0.2) Hz |
| peak load ratio | 3:01:00 |
| Output distortion(THDV%) | ≤ 2% linear load, ≤ 5% nonlinear load |
| Overload capacity | Load ≤ 110%, 60min, ≤125%, maintain 10min, maintain 150% ≤ 1min, ≥150% shut down immediately |
| Battery voltage | Default ± 192V DC (32 cells), 32-40 battery count |
| Charging current | 10A max |
| Communication interface | USB, RS485, dry node, parallel (option), SNMP card (option), relay card (option) |
| Rack size | 580X443x131mm (3U height) |
| weight | 33.5 |
